ACROBAT™ 315
200mm – 315mm (8″ – 12″)
Our Acrobat 315 has been specially designed to fuse pipes in ditches and small work spaces. It is a small machine with a very small weight that can still be lightened more by configuring 4 to 3 jaws without the use of tools.
In order to satisfy all the desired pressure of the system in the construction projects, our Acrobat machines are compatible with two hydraulic power units. The carriage pressure can be configured in two ways: Low force, in the event that we are going to merge with slow entrainment or in thin-walled tubes. And high force, for those cases in which we are going to merge with high drag and vertical applications. In both options the operator will be able to define the pressures of countersigned, heating and fusion.
ACROBAT™ 315 IN ACTION
Click on the photos and videos below to see how the Acrobat 315 works
PARTS & ACCESSORIES FOR ACROBAT™ 315
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.
Acrobat HPU
Hydraulic Power Unit. 120V, 50/60Hz, 1Ph.
Blade Set
Spare facer blades. Facer Blade Set (4 Blades).
DynaMc HPU
Hydraulic Power Unit. HPU 120V, 60Hz, 1Ph. HPU 220V-240V, 50/60Hz, 1Ph.
Facer
Powered blades keep the pipe edges clean and aligned. 100-120V Facer. 220-240V Facer.
Facer Stand
Facer stand provides a convenient place to protect and store your facer out of the dirt and mud.
Heater
Microprocessor-controlled with a dial thermometer. 100-120V Heater and 220-240V Heater.
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion. Set of 2 plates with anti-stick coating required for butt fusion. Kit includes attaching screws and wrench.
Hydraulic Pipe Stand
Adjustable pipe stand to properly support, position, and align pipe to be fused. 12″/18″ Pipe Stand. 12″/18″ Pipe Stand with Manual Height Adjustment. 12″/18″ Pipe Stand with Hydraulic Height Adjustment.
Low Profile Rollers
Low profile rollers.
Premium Shipping Container
Protects and transports machine, HPU, heater and facer. Acrobat 160 Premium Shipping Container.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Spare Heater Stand
Holds heater for easier carrying and protection. Heater bag helps the heater maintain a constant temperature.
SPECIFICATIONS

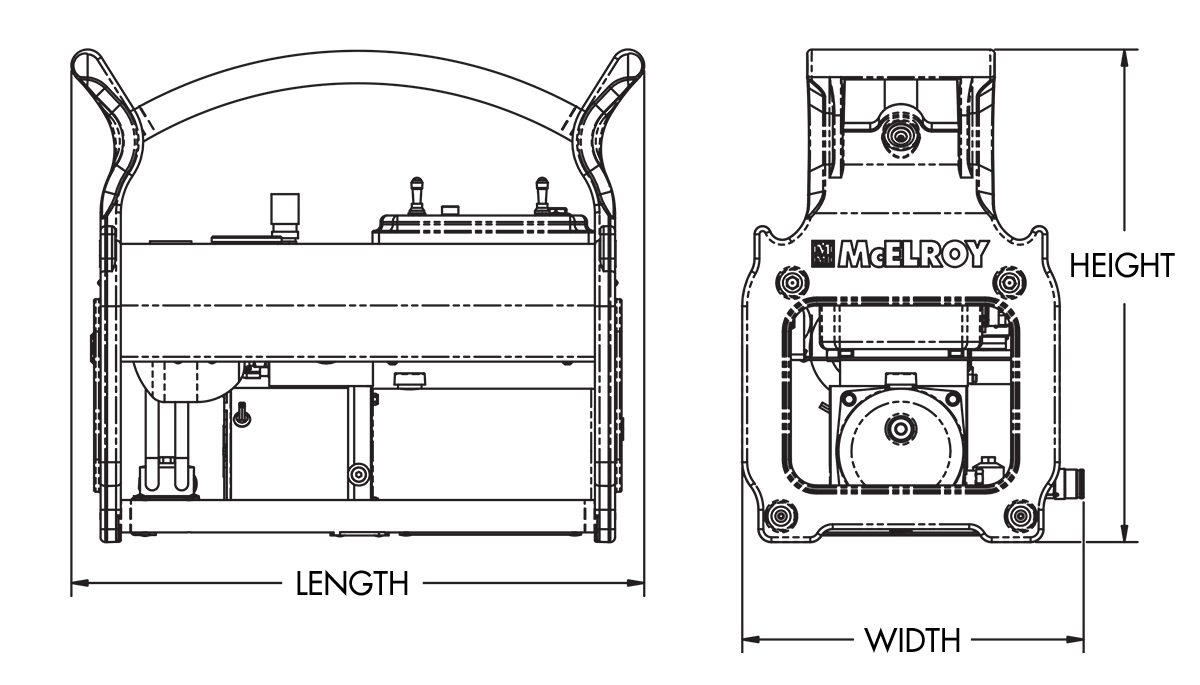

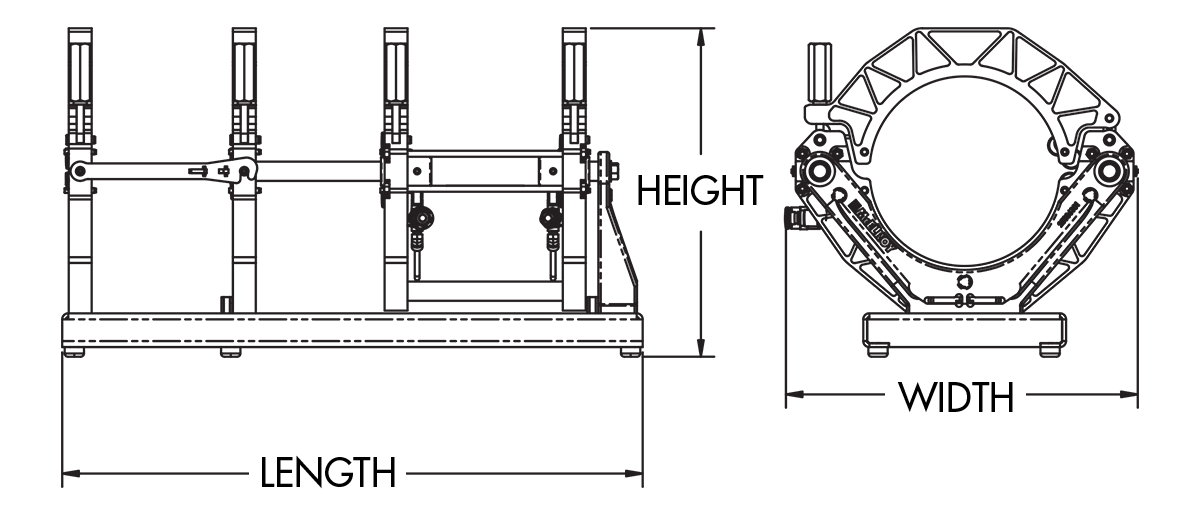

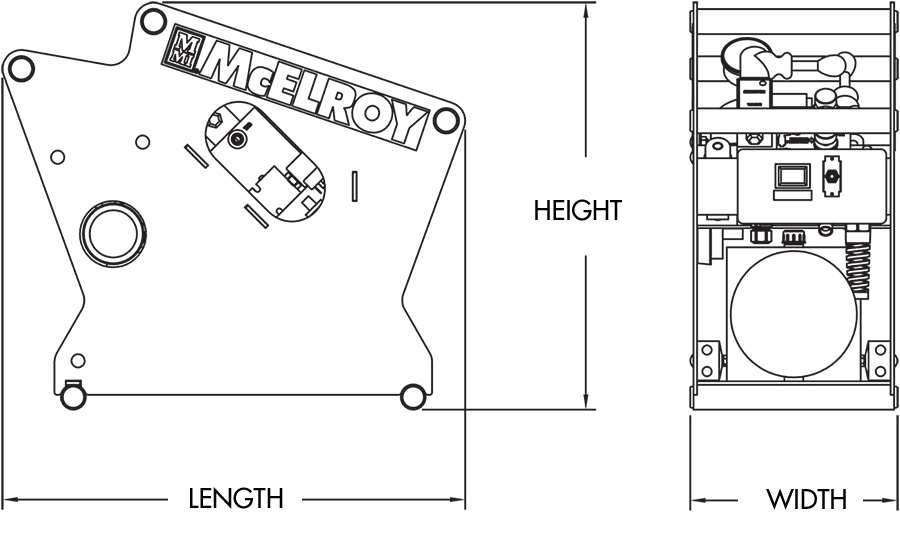

| Acrobat™ 315 | |
| 4-Jaw Carriage | 97 lbs. (44 Kg) |
| 3-Jaw Carriage | 72 lbs. (32.7 Kg) |
| Facer | 38 lbs. (17.2 Kg) |
| Heater | 22 lbs. (10 Kg) |
| Acrobat Hydraulic Power Unit (HPU) | 56 lbs (25.4 Kg) |
| DynaMc Hydraulic Power Unit (HPU) | 115 lbs (52.1 Kg) |
| Acrobat™ HPU | DynaMc® HPU | |
| Maximum Gauge Pressure | 800 PSI (55.2 BAR) | 1,500 PSI (103.4 BAR) |
| Acrobat™ 315 | |
| Heater Power Requirements | 120V – 1.85 kW 240V – 3 kW |
| Input Voltage Requirements | 50/60Hz, 1 Phase |
| Acrobat Hydraulic Power Unit (HPU) | 120V – .3 HP/ 5.9 Amp 240V – .3 HP/ 2.4 Amp |
| DynaMc Hydraulic Power Unit (HPU) | 120V – 2.2HP/ 14 Amp 240V – 2.2HP/ 7 Amp |
| Plug Type | 120V – Nema 5-15 240V – CEE 7/7 |
| Acrobat™ 315 | |
| Frame | Welded aluminum construction |
| Acrobat™ 315 | Acrobat HPU | DynaMc HPU | ||
| 4-Jaw Carriage | 3-Jaw Carriage | |||
| Length | 30″ (762 mm) | 23.9″ (607 mm) | 22.1″ (562 mm) | 24.5″ (622 mm) |
| Width | 25″ (635 mm) | 24.3″ (617.2 mm) | 13.5″ (335 mm) | 11″ (279 mm) |
| Height | 21.2″ (538.5 mm) | 18.7″ (475 mm) | 19″ (482.6 mm) | 21.5″ (546 mm) |
ADAPTABLE AND FLEXIBLE TO COMPLY WITH THE REQUIREMENTS OF ANY WORK
These machines offer the best features for butt welding of polypropylene pipes in more advanced mechanical and commercial HVAC plumbing applications. The Acrobat fusion machines are simple to operate, have a compact design and are very light. You can weld pipes on ceilings, on walls or on the floor. We have two models that can weld pipes of sizes between 63mm and 315mm (2 «to 12») of polypropylene.
SMALL AND VERY
LIGHT MACHINES
This machine has been specially built to have a small size and a light weight. In this way we managed to simplify the mergers on the head. The Acrobat model has a modular hydraulic power unit that consumes much less power and also makes the machine lighter. This makes the transport of all our Acrobat machines at work easier.
MORE VERSATILE
HYDRAULIC POWER
VERSATILITY IN THE POWER AND CART CONFIGURATIONS TO SATISFY THE REQUIREMENTS OF EACH PROJECT
In order to satisfy all the desired pressure of the system in the construction projects, our Acrobat machines are compatible with two hydraulic power units. The carriage pressure can be configured in two ways: Low force, in the event that we are going to merge with slow entrainment or in thin-walled tubes. And high force, for those cases in which we are going to merge with high drag and vertical applications. In both options the operator will be able to define the pressures of countersigned, heating and fusion.
MAKES MERGERS IN
ANY TYPE OF ORIENTATION
VERTICAL INSTALLATIONS, ON THE HEAD AND MUCH MORE
All our Acrobat machines are adapted to any type of situation and are capable of welding on the head, vertically or horizontally. It has narrow jaws that achieve fusions in several flanges and connectors. The Acrobat 250 and 315 models have a light heater system and blocking of the guide bar. That eliminates the need to hold the heater in place in the head-on fusions.
CONVERT THE ACROBAT IN A SMALLER 3-CLUTCH TRUCK WITHOUT TOOLS
Transforms the car from 4 to 3 jaws by disassembling it from its base without the need for extra tools. In this way you will get a smaller machine for narrow spaces. Both the countersigned and the heater can be loaded above or below the carriage with this configuration. In this way the operator can work more comfortably and flexibly in any work situation.
DATALOGGER®
COMPATIBLE*
THE EASIEST WAY TO RECORD & ANALYZE ALL YOUR FUSION JOINT DATA
All Acrobat machines are compatible with McElroy DataLogger. This is a small handheld computer that is responsible for documenting and analyzing the key parameters that are happening throughout the merger process. Later all this data is used to verify that all steps and fusion procedures are adequate before installation. The joint DataLogger records can be stored and analyzed in Vault, our server on the Internet. This allows a better classification, faster and easier, a labeling and an exchange of joint records by machine, articulation, operator, device or work.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty
ADITIONAL FEATURES
| Acrobat 160 | Acrobat 250 | Acrobat 315 | |
| Small footprint, lightweight | ✓ | ✓ | ✓ |
| Tool-less conversion from 4-jaw to 3-jaw carriage for tight work spaces | ✓ | ✓ | ✓ |
| Narrow jaws allow fusions for flanges to outlet branch of tees and most fittings | ✓ | ✓ | ✓ |
| Hard anodized aluminum wear surfaces for corrosion resistance | ✓ | ✓ | ✓ |
| DataLogger® compatible | ✓ | ✓ | ✓ |
| Single insert design | ✓ | ||
| Removable upper jaws | ✓ | ✓ | ✓ |
| Ergonomic heater handlebar design✓ | ✓ | ✓ | |
| Lightweight heater and guide rod latching system eliminates the need to hold the heater in place during overhead fusions | ✓ | ✓ | |
| Low-power consumption | ✓ | ✓ | ✓ |
| Open-frame HPU design offers easy access for maintenance | ✓ | ✓ | ✓ |
| Low- or high-force cylinders available for versatility | ✓ | ✓ | |
| Compatible with Acrobat and DynaMc® HPUs to meet maximum system pressure desired | ✓ | ✓ | |
| Facer with inline motor and gear reduction for lightweight, compact assembly; squeeze trigger makes locking and unlocking from the carriage easier | ✓ |
