DYNAMC 412
4″ IPS – 12″ DIPS (110mm – 340mm)
Maximum power in the smallest package. This is the line of DynaMC of 412. It is a machine that has been built especially for the fusion of pipes in pits. These machines have all the patented features of the McElroy brand in a small unit for use in smaller environments.
The DynaMc 412 HP is fully fused with a hand pump, while the DynaMc 412 EP is powered by the Hydraulic Power Unit (HPU). Both are available as 2 or 4 jaw models.
THE DYNAMC 412 IN ACTION
Click on the photos and videos below to see how the dynamc 412 works
PARTS & ACCESSORIES FOR THE DYNAMC 28
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.
DataLogger® 6
Collect and analysis of data on all your fusions
6″ IPS Polyvalve Conversion Kit
Converts a standard 6″ Hot Tapping Tool to a 6″ Polyvalve Hot Tap Tool. Kit includes 3″ OD cutter.
DynaMc HPU
Hydraulic Power Unit. HPU 120V, 60Hz, 1Ph. HPU 220V-240V, 50/60Hz, 1Ph
Facer Stand
Facer stand provides a convenient place to protect and store your facer out of the dirt and mud.
Heat Shield
For fusing two materials with different melt rates. Shields the faster melt rate materials from over melting.
Heater Caddy
The Heater Caddy allows you to use the machine to easily carry the heater with the stand from joint to joint. Retrofit Kit for TracStar 28/250 machines built before 9/2010. Allows the heater and heater bag frame to attach to a TracStar.
Hot Tap Tool
Branch saddle tapping tool for polyethylene pipe.
Low Profile Rollers
Low profile rollers.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Self-Centering Stub End Holder
Self-centering stub end holder to hold stub end for butt fusion.
Spare 4.63″ Facer Blade Set
Spare facer blades.
Spare 6.13″ Facer Blade Set
Spare facer blades.
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion.
Test Caps
Quick and easy air pressure testing of polyethylene pipe.
SPECIFICATIONS

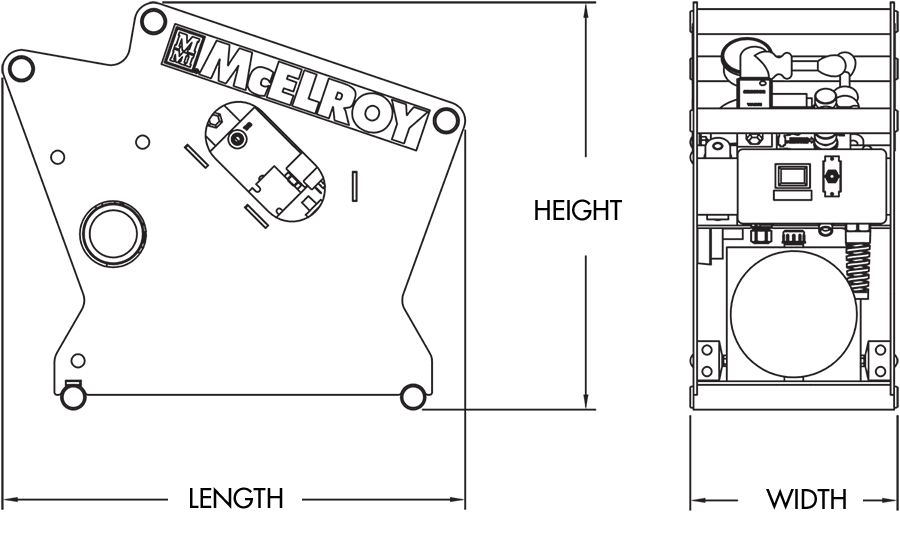

| DynaMc® Hand Pump | DynaMc® Electric Pump | DynaMc® Auto | |
| 4-Jaw | 293 lbs (132 Kg) | 263 lbs (120 Kg) | 120 Kg (263 lbs) |
| 2-Jaw | 200 lbs (90 Kg) | 170 lbs (77 Kg) | N/A |
| Facer | 54 lbs (24.5 Kg) | 54 lbs (24.5 Kg) | 28.6 Kg (62 lbs) |
| Heater | 24 lbs (10.9 Kg) | 24 lbs (10.9 Kg) | 27.2 Kg (60 lbs) |
| HPU (Hydraulic Power Unit) | N/A | 115 lbs (52.1 Kg) | 75.3 Kg (166 lbs) |
| 4-Jaw Shipping Container | 460 lbs (209 Kg) | 385 lbs (175 Kg) | 290 Kg (640 lbs) |
| 2-Jaw Shipping Container | 395 lbs (179 Kg) | 320 lbs (145.2 Kg) | N/A |
| DynaMc® Hand Pump | DynaMc® Electric Pump | DynaMc® Auto | |
| System Pressure | 1,500 PSI (103 BAR) Max | N/A | 1,200 PSI (83 BAR) Max |
| DynaMc® Hand Pump | DynaMc® Electric Pump | DynaMc® Auto | |
| Frame | Welded aluminum construction | Welded aluminum construction | Welded aluminum construction |
| DynaMc® Hand Pump | DynaMc® Electric Pump | DynaMc® Auto | |
| Heater Power | 3000 Watt | 3000 Watt | 3000 Watt |
| Facer Power | 1.6 HP, 10 Amp @ 120V / 5 Amp @ 240V | 1.6 HP, 10 Amp @ 120V / 5 Amp @ 240V | Hydraulic |
| Minimum Power Requirements | 4.2 kVA , 4.2 kW | 4.2 kVA , 4.2 kW | 3 kVA , 3kW |
| Facer Plug Type | 120V – A | 120V – A | N/A |
| 240V – M | 240V – M | N/A | |
| Heater Plug Type | C | C | N |
| DynaMc® Hand Pump | DynaMc® Electric Pump | DynaMc® DynaMc® Auto | ||||||||
| 2-Jaw | 4-Jaw | Shipping Container | 2-Jaw | 4-Jaw | HPU | Shipping Container | Machine | HPU | Shipping Container | |

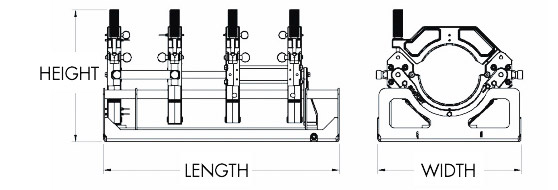

| Length | 27″ (686 mm) | 34″ (864 mm) | 62″ (1,575 mm) | 27″ (686 mm) | 34″ (864 mm) | 24.5″ (622 mm) | 48″ (1219 mm) | 34″ (864 mm) | 597 mm (23.5″) | 48″ (1219 mm) |
| Width | 32″ (813 mm) | 32″ (813 mm) | 40″ (1,016 mm) | 27″ (686 mm) | 27″ (686 mm) | 11″ (279 mm) | 40″ (1016 mm) | 27″ (686 mm) | 559 mm (22″) | 40″ (1016 mm) |
| Height | 26.5″ (673 mm) | 26.5″ (673 mm) | 36″ (914 mm) | 24″ (610 mm) | 24″ (610 mm) | 21.5″ (546 mm) | 30″ (762 mm) | 24″ (610 mm) | 406 mm (16″) | 33″ (483 mm) |
GREAT POWER IN A SMALL MACHINE
Our DynaMc offer great power in a very small package. They are ideal machines for the fusion butt in really reduced spaces. Despite their small size the DynaMc offer the best features; Robustness and strength patented by McElroy. Available in units of 2 and 4 jaws. These jaws are easily separated from the base in order to further reduce the footprint of the machine. It is available in three ranges of tube sizes. From the smallest of 2 «(63mm) to 12» (340mm).
COMPACT AND
MODULAR MACHINES
PERFECT FOR CLOSE-QUARTER FUSION
Our DynaMc consists of a trolley, a restraint support, a restrainer, a heater and an insulator heater support. All of them can be moved and placed comfortably to give maximum flexibility in the smallest work environments. All the components of this machine are specially built to offer a compact design without losing any kind of limitation. It is available in configurations of 2 and 4 jaws. In the 4 jaw units, the full length guide rod and the third single movable jaw allow working in the vicinity of the cardinal points and the tees without the removal of the outer jaw.
LOT OF
MACHINE OPTIONS
ALL KIND OF MODELS AVAILABLE: ELECTRIC, HAND AND AUTOMATIC PUMP MODELS
We have several models. The HP DynaMc (hand pump) welds the pipes to butt with the hand pumps. The DynaMc EP (electric pump) works with a common hydraulic unit (HPU). This same HPU can be used with many other DynaMc machines. The HPU also uses a hydraulic accumulator to maintain fusion pressures and reduce energy consumption. The DynaMc Autos offer a powerful combination of features and operate within the PL2-3 gas industry specification and water industry specification 4-32-08, as well as other specifications.
DATALOGGER®
COMPATIBLE*
THE EASIEST WAY TO RECORD & ANALYZE ALL YOUR FUSION JOINT DATA
All our DynaMc machines are compatible with McElroy DataLogger. This is a small handheld computer that is responsible for documenting and analyzing the key parameters that are happening throughout the merger process. Later all this data is used to verify that all steps and fusion procedures are adequate before installation. The joint DataLogger records can be stored and analyzed in Vault, our server on the Internet. This allows a better classification, faster and easier, a labeling and an exchange of joint records by machine, articulation, operator, device or work.
BEST QUALITY
AND CONSISTENCY
UNIFORM SUPPLY OF FOCES THANKS TO THE CENTERLINE GUIDANCE
All McElroy Machines have a Centerline Guidance a patented technology which creates an equal distribution of forces. This technology ensures that the center lines of the clamping jaws of the tubes are located in the same plane as the pipeline itself. As a result, we will obtain a high quality union provided by the equal force that is distributed by the center of the diameter of the tube during the fusion.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| DynaMc HP | DynaMc EP & HPU | DynaMc Auto | |
| Patented Centerline Guidance System for equal distribution of force around the joint | ✓ | ✓ | ✓ |
| On four-jaw units, the full-length guide rod and unique moveable third jaw allow work in close proximity to ells and tees without the removal of the outer jaw | ✓ | ✓ | |
| Serrated jaws and inserts keep pipe from slipping during fusion process | ✓ | ✓ | ✓ |
| Detachable easy-lift cradle for improved maneuverability to and from worksite | ✓ | ✓ | ✓ |
| Utilizes a hydraulic accumulator to maintain fusion pressure and reduce power consumption | ✓ | ||
| ISO-compliant industrial Teflon-coated heater plates | ✓ | ✓ | ✓ |
| Powerful electric facer that can be loaded from either side of the carriage | ✓ | ✓ | ✓ |
| Double-action hand pump and high-velocity cylinders create fast carriage speeds during fusion processes | ✓ | ||
| 2-jaw machine availability | ✓ | ✓ | |
| DataLogger® compatible | ✓ | ✓ | |
| Features a common Electric Pump that powers a variety of fusion machines | ✓ | ||
| USB port for downloading fusion reports and uploading firmware | ✓ | ||
| Weather-resistant enclosure for control unit | ✓ | ||
| Built-in magnetic strips allow attachment of control unit to power unit | ✓ |
