MEGAMC 2065
20″ OD – 65″ OD (500mm – 1600mm)
Large diameter polyethylene pipes are used more and more and that is why The MegaMc 2065 is one of the most used machines along projects around the world.
This machine operates on its own without the need for accessories or extra supports. Inserts with English are available to make ells. Thanks to McElroy’s exclusive semiautomatic control system, a single operator can control the MegaMc 2065. As it happens with the rest of our machines of these ranges, the hydraulic power allows to perform all types of fusion operations, including the complete operation of the jaws, pipe lifts, heaters and facer.

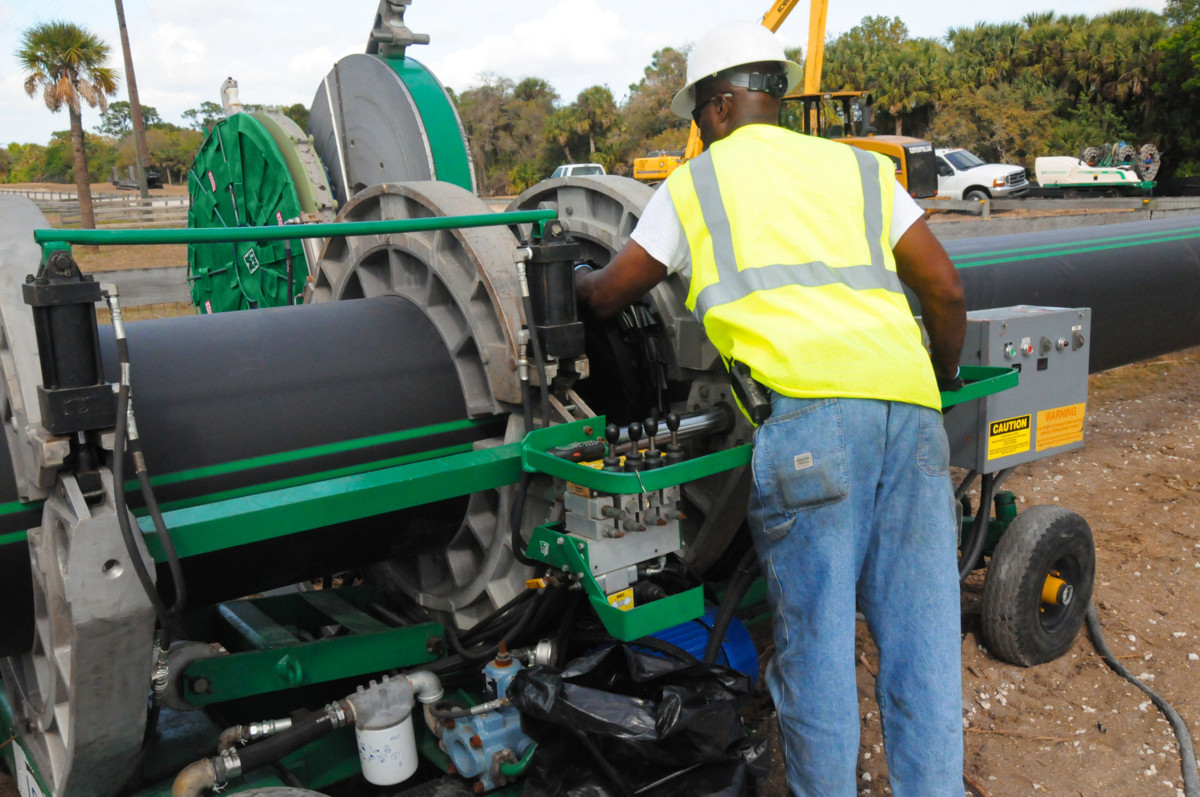

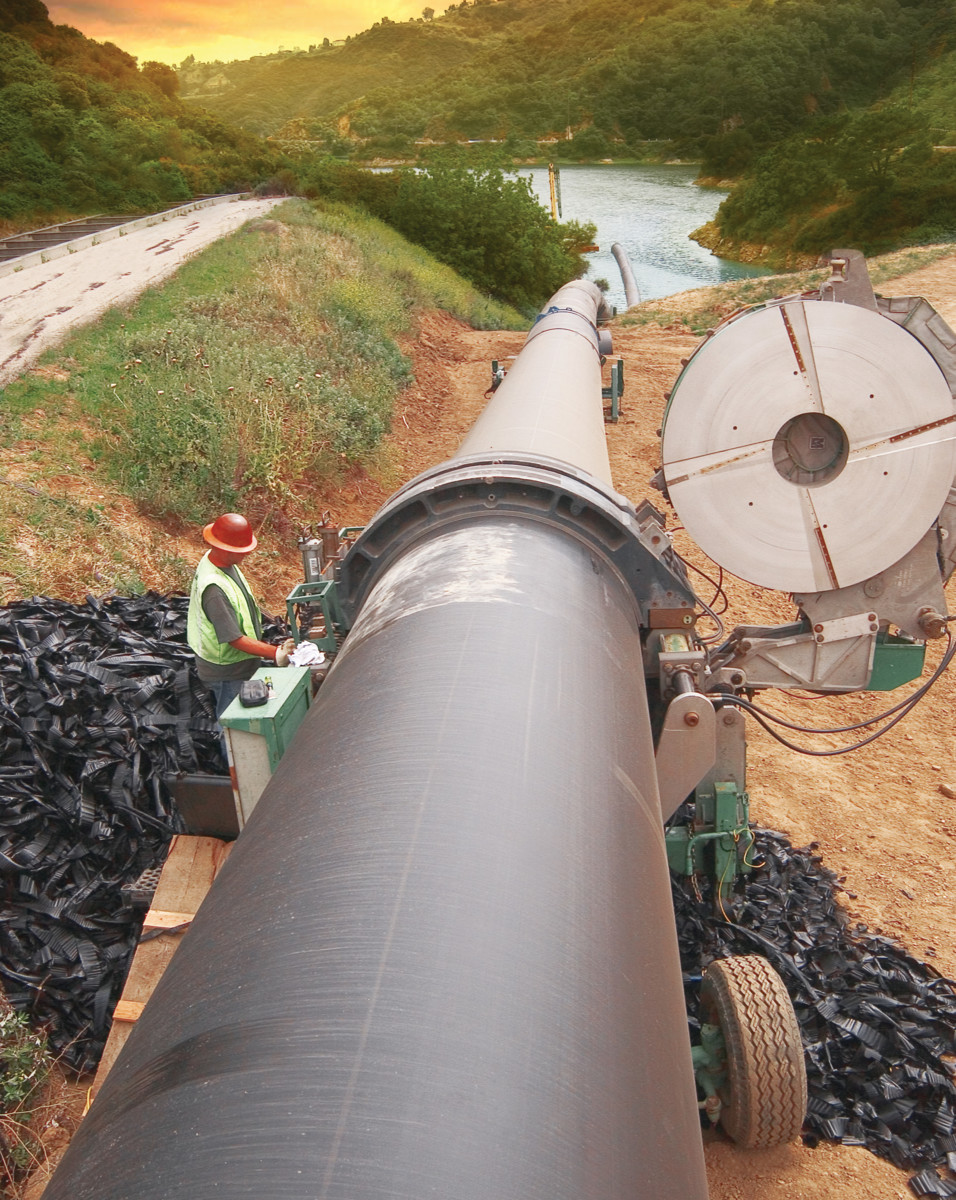

THE MEGAMC 2065 IN ACTION
Click on the photos and videos below to see how the MegaMc 2065 works
PARTS & ACCESSORIES FOR THE MEGAMC 824
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.
DataLogger® 6
Collect and analysis of data on all your fusions
MegaMc® Pipe Stand
Powered pipe stand with lateral and vertical movement. MegaMc 8-36 Pipe Stand (gas). MegaMc 8-36 Pipe Stand (diesel).
Blade Set
Spare facer blades. 48″/65″ Facer Blade Set (8 blades). 48″/65″ Extended Life Facer Blade Set (8 blades). Carbide Facer Blade Set (8 Blades).
Pipe Support Stand
Height is adjustable to properly support, position and align pipe to be fused.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion.
Stub End Holder
Holds stub end fittings for butt fusion to the end of a pipe.
SPECIFICATIONS
| MegaMc® 2065 | |
| Machine | 14,000 lbs (6,350 Kg) |
| Facer | 1,200 lbs (544 Kg) |
| 20-48″ Heater | 600 lbs (272.2 Kg) |
| 48-65″ Heater | 713.5 lbs (323.6 Kg) |
| Spreader Bar | 650 lbs (294.8 Kg) |
| Shipping Weight | 14,400 lbs (6,532 Kg) |
| MegaMc® 2065 | |
| System Pressure | 1500 PSI (103 BAR) Max. |
| Hydraulic Reservoir Capacity | 24 Gallons (90.85 Liters) |
| Motor | 20HP, 3 Phase, 240V |
| MegaMc® 2065 | |
| Frame | Welded steel construction |
| Front Axle | Articulating |
| Brake | Mechanical |
| MegaMc® 2065 | |
| Tires | 12 – 16.5LTF, F-12 |
| Transportation | Pulled via towing ring |
| Lifting | Lift points and lifting assembly |
| MegaMc® 2065 | ||
| Machine | Shipping Container | |
| Length | 186.5″ (4737 mm) | 184″ (4674 mm) |
| Width | 102″ (2591 mm) | 102″ (2591 mm) |
| Height | 112″ (2845 mm) | 106″ (2695 mm) |
REVOLUTIONARY SIZE AND SKILLS
Versatility and power combined to build our MegaMc® fusion machines. Their main feature is that they are large diameter machines that give the flexibility characteristic of smaller diameter machines. Strong and resistant they are able to resist any climate and work in the most adverse conditions, in trench and in the smallest spaces.
NO LIFTING
REQUIRED
THE CHASSIS WITH WHEELS GIVES EASY WORK HANDLES
For longer pipes of medium and large diameters, this type of machine provides the necessary comfort in the workplace thanks to its portability. For each melting area the rolled machines are towed very simply, remaining stationary as they melt and the pipe rods are dragged.
HYDRAULIC
POWER
POWERFULL HYDRAULIC SYSTEM THAT WILL ASSIST ALONG ALL THE FUSION FUNCTIONS
All the functions where a lot of force is required are carried out without any problem thanks to its hydraulic system. Both the clamping and unblocking of the jaws and the fast and efficient face of the pipe ends are hydraulically operated. This function greatly helps to raise and lower the pipe of the machine. The reflector and the heater also work hydraulically, indexing from left to right and piloting in and out of the fusion machine. There is also a bar that protects the car in the area of the hydraulic car collector.
DATALOGGER®
COMPATIBLE*
THE EASIEST WAY TO RECORD & ANALYZE ALL YOUR FUSION JOINT DATA
All of the medium- and large-diameter Rolling machines are compatible with McElroy DataLogger. This is a small handheld computer that is responsible for documenting and analyzing the key parameters that are happening throughout the merger process. Later all this data is used to verify that all steps and fusion procedures are adequate before installation. The joint DataLogger records can be stored and analyzed in Vault, our server on the Internet. This allows a better classification, faster and easier, a labeling and an exchange of joint records by machine, articulation, operator, device or work.
MULTIPLE
CYCLINDER OPTIONS
DESIGNED FOR ALL KINDS OF JOBSITE DEMANDS
Our MegaMc machines are available in a wide variety of different cylinder forces to suit every type of work and project. The type of pipe, the characteristics of each job, the fusion standards … These are variables that must be taken into account when choosing the MegaMc machine that best suits what you are looking for.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| Rolling 28 | Rolling 250 | Rolling 412 | Rolling 618 | MegaMc® 824 | MegaMc® 1236 | MegaMc® 1648 | MegaMc® 1600 | MegaMc® 2065 | |
| Patented Centerline Guidance System for equal distribution of force around the joint | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Industry standard semi-automatic hydraulic control system | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DataLogger® compatible | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Powerful hydraulic facer for facing the toughest pipe with ease | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Advanced blade design for smooth face and long life | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ISO-compliant industrial Teflon-coated heater plates | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hard-anodized aluminum wear surfaces for corrosion resistance | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Removable 3- or 4-jaw carriage for close quarter use | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Available in Combination Unit (CU) for sidewall fusion | ✓ | ✓ | |||||||
| Large capacity 2-stage hydraulic pump for cool oil at max operating pressure | ✓ | ✓ | |||||||
| Lightweight heater design with 45-degree handle to prevent overheating | ✓ | ✓ | |||||||
| Microprocessor-controlled heater | ✓ | ✓ | ✓ | ✓ | |||||
| Thrust-bearing-equipped clamp knobs to minimize force required to clamp and round pipe | ✓ | ✓ | ✓ | ✓ | |||||
| High-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Medium-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Low-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| On-board generator for powering heater | ✓ | ✓ | |||||||
| Gas-powered models available | ✓ | ✓ | |||||||
| Hydraulic pipe lifts | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Heater and facer can be easily converted to top-loading for confined spaces | ✓ | ✓ | |||||||
| Rugged outriggers for added stability | ✓ | ✓ | ✓ | ✓ | |||||
| 4-jaw carriage only | ✓ | ✓ | |||||||
| Hydraulic clamping available (standard on all MegaMc machines) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Hydraulic pivoting heater and facer | ✓ | ✓ | ✓ | ||||||
| Removable fourth jaw for enhanced convenience in fusing prefabricated fittings onto the pipe | ✓ | ||||||||
| Automatic hydraulic heater stripping to improve open and close times | ✓ |
