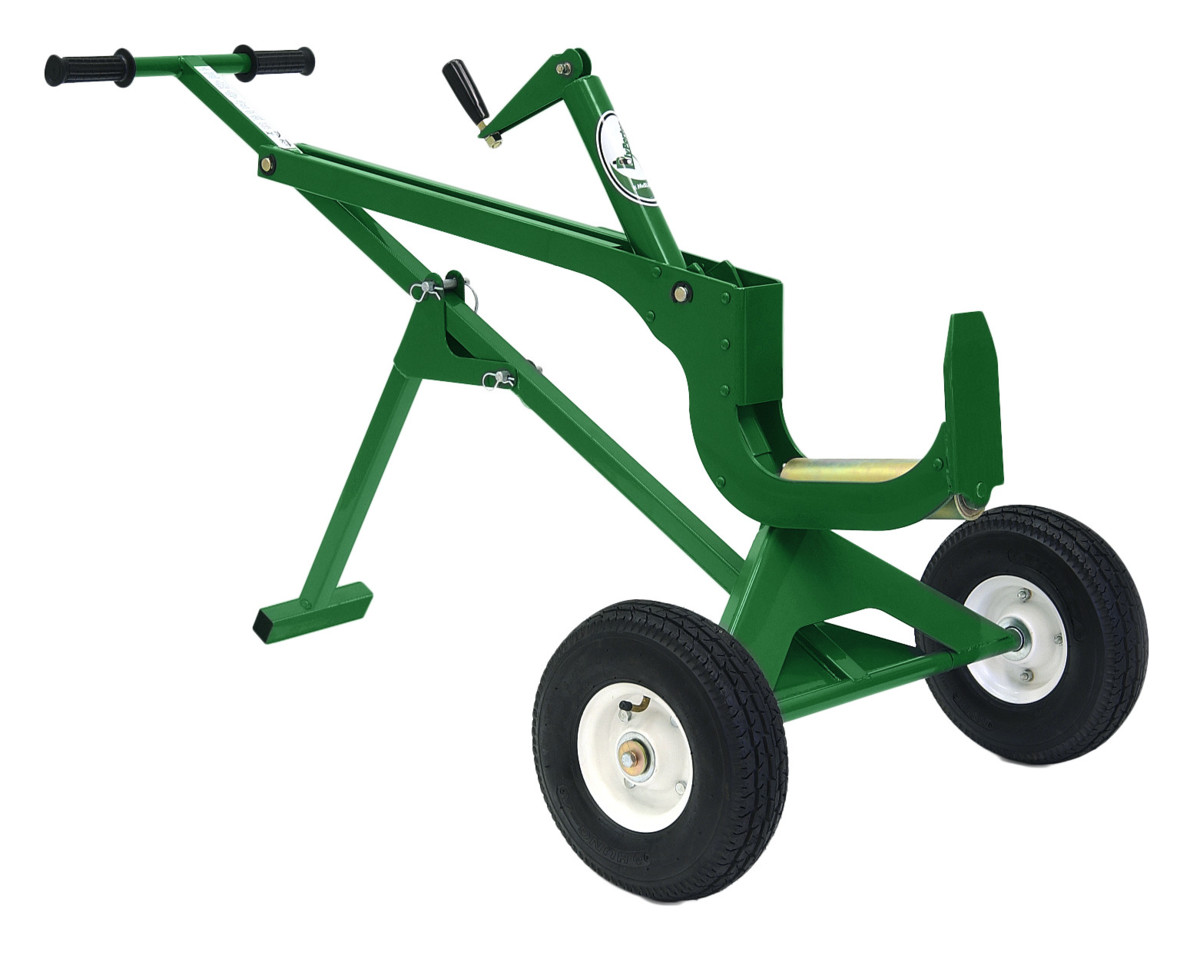

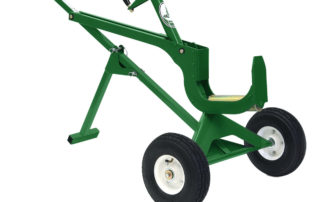

POLYPORTER
This machine has been created from the ideas of a pipe contractor. It is an all-terrain machine with which you can perform manipulation work in the field in a very simple way. The Polyporter combines the functionality of a pipe support with all the mechanical advantages offered by a Dolly to create the ultimate pipe tool.
A single operator can easily load a large diameter pipe without any problem. With the hook arm equipped with rollers you can push the pipes to the fusion machine. With the jack a single operator will be able to raise and lower the Polyporter getting level the tube at the height of the fusion machine, in situations where the ground is unstable.

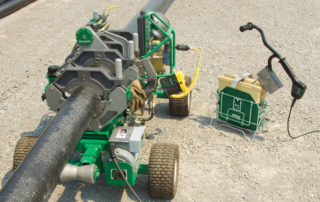

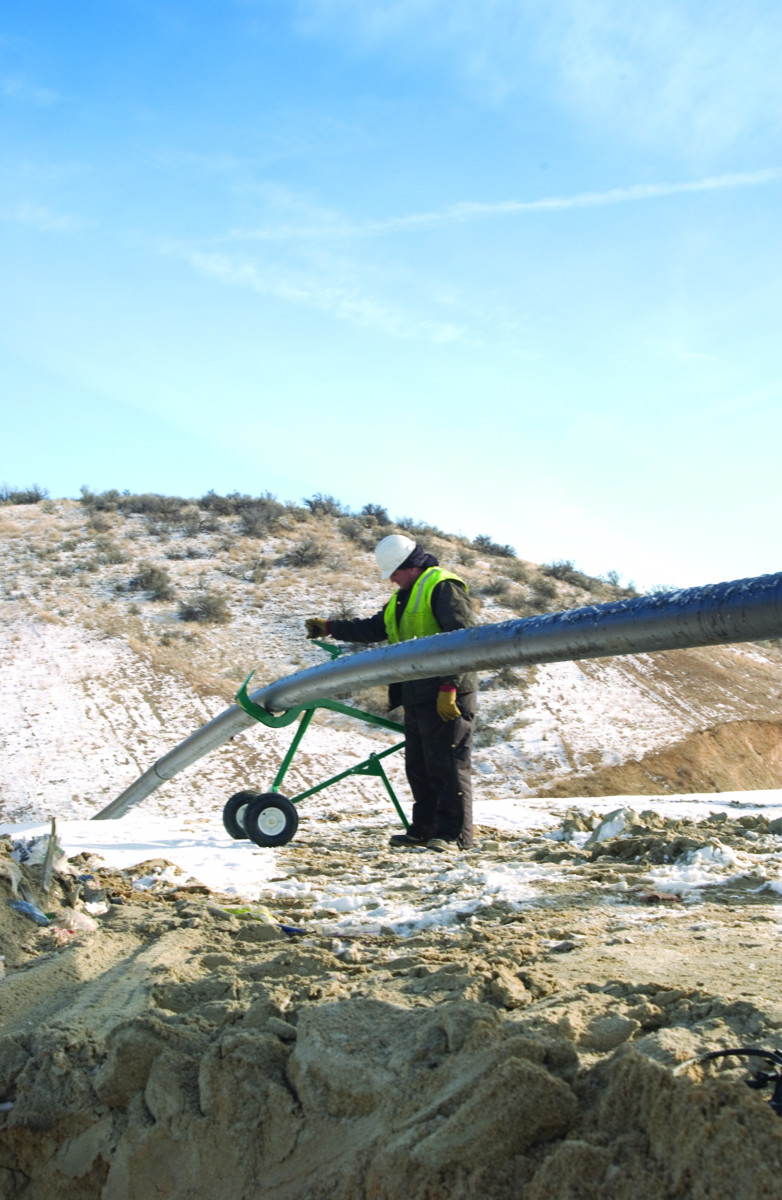

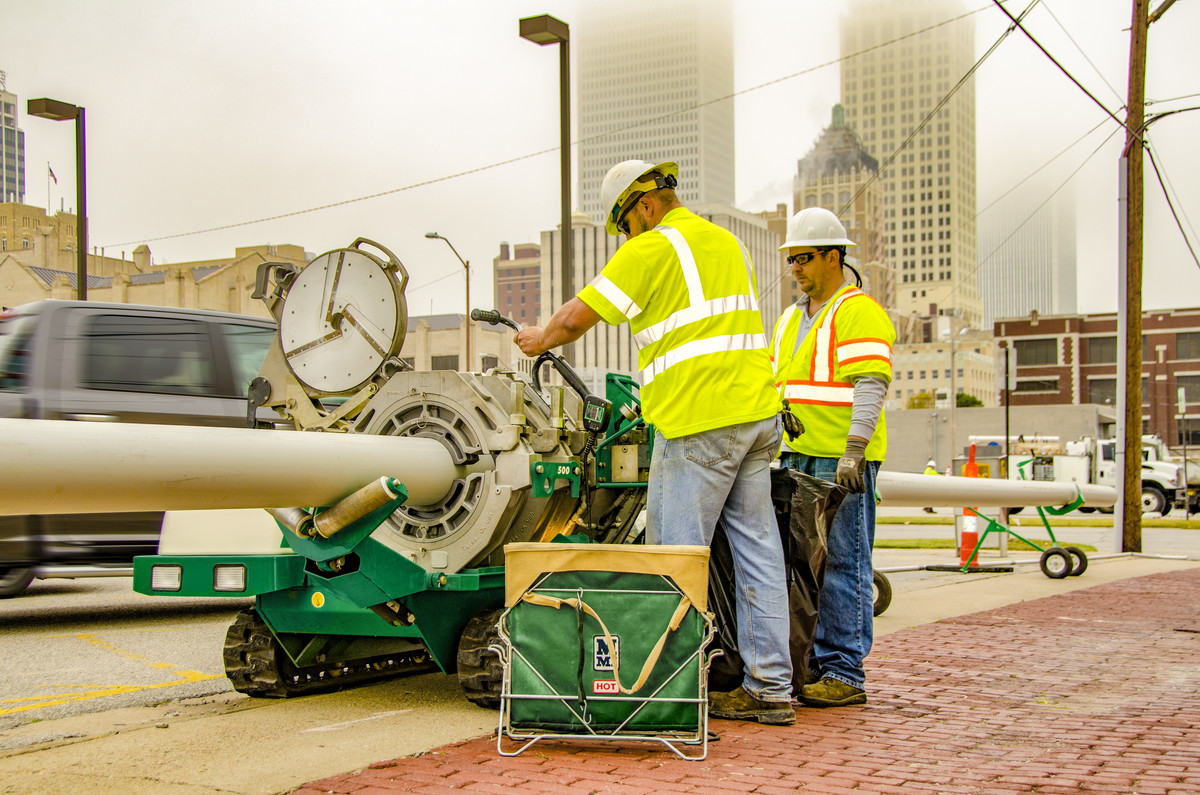

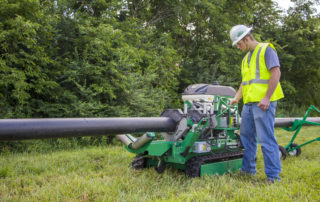

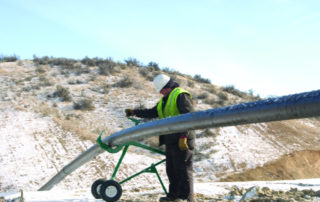

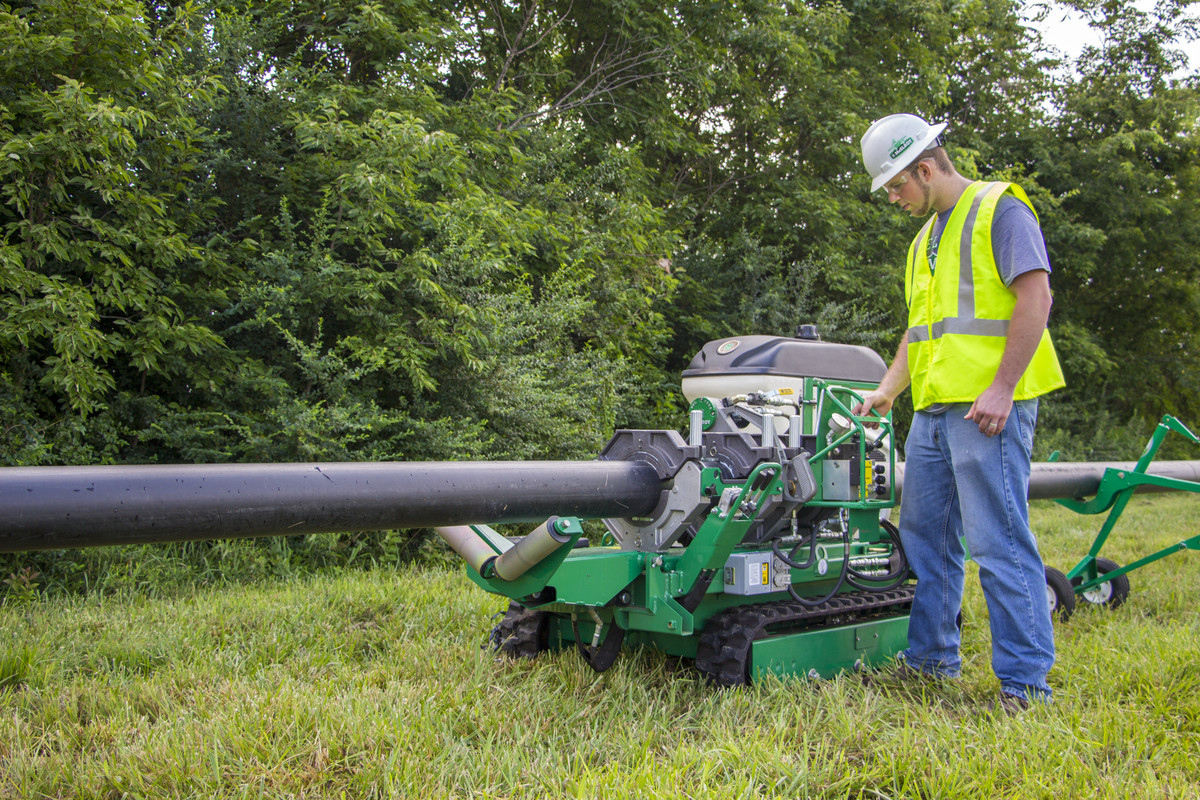

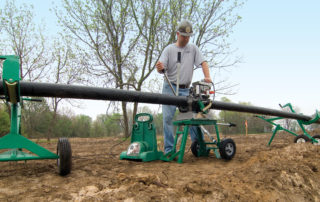

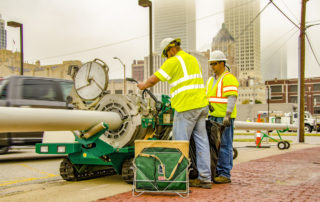

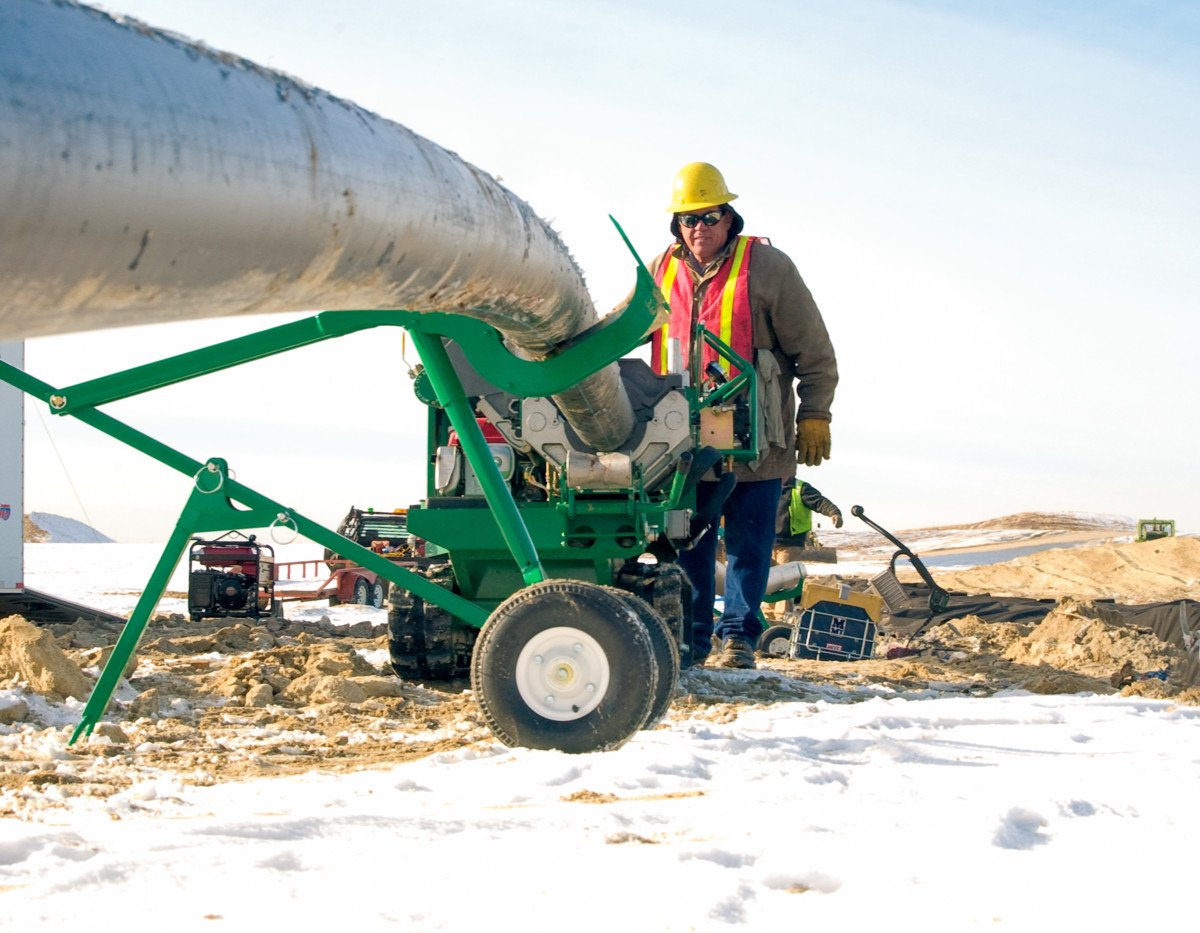

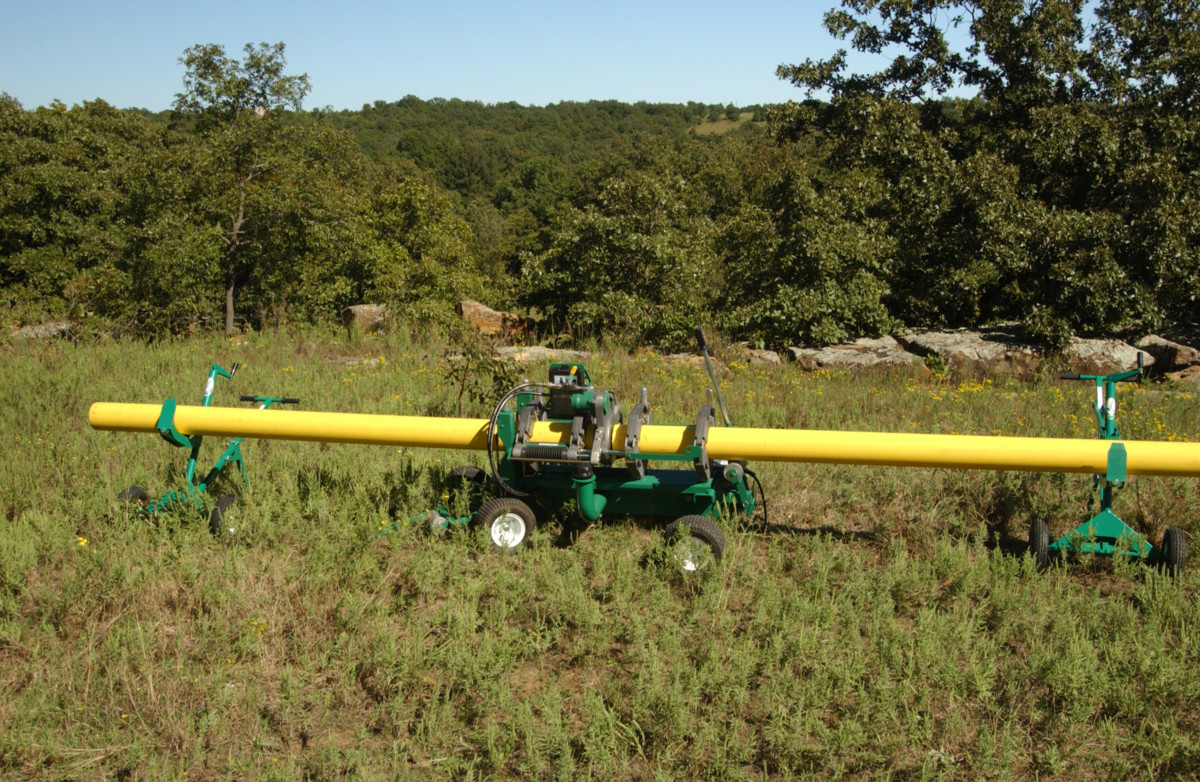

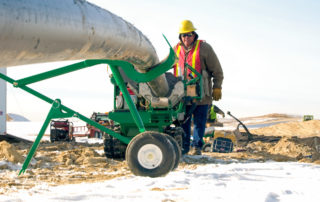

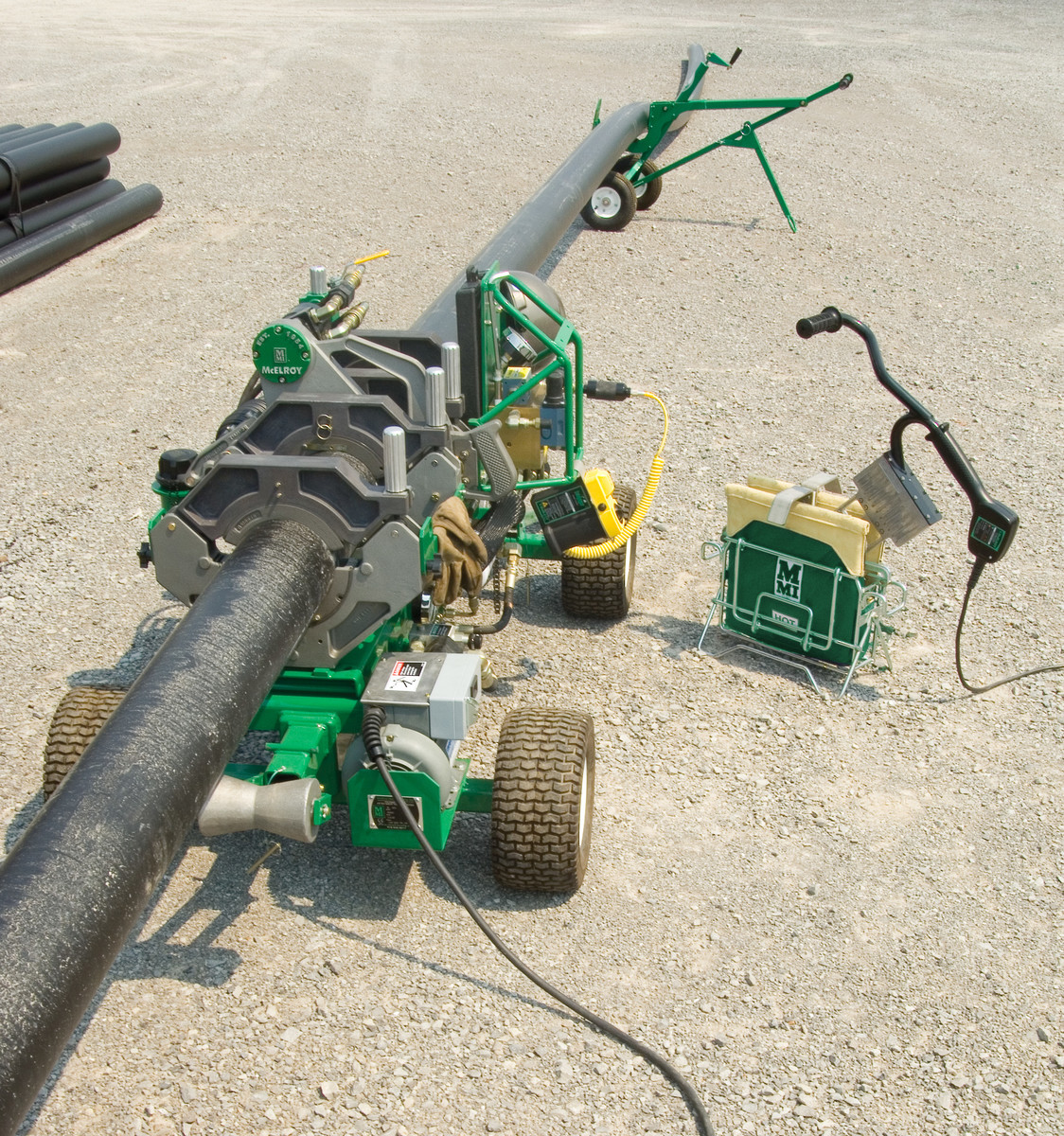

POLYPORTER IN ACTION
Click on the photos and videos below to see how Polyporter works
SPECIFICATIONS
| PolyPorter® | |
| Machine | 63 lbs (28.6 Kg) |
| PolyPorter® | |
| Height Range | 20.5″ – 38″ (521mm – 965mm) at center of 8″ DIPS pipe |
| Maximum Load | 300 lbs (136 Kg) |
| Lifts | 2″ IPS – 8″ DIPS pipe (63mm – 250mm) |
| Shipping Weight | 65 lbs (30 Kg) |
| PolyPorter® | |
| Tires | Inflatable Tires |
| PolyPorter® | ||
| Length | 51.5″ (1,308 mm) | 62″ (1,575 mm) |
| Width | 31″ (787 mm) | 40″ (1,016 mm) |
| Height | 32″ (811 mm) | 10″ (254 mm) |
Pipe Rollers
WORK SMARTERLY
Our rollers will not only save you time, but will reduce the tension and damage the operator does to move the pipe. You will find our rollers for a wide range of pipes that can range from 1 «IPS to 65» outside diameter. These rollers are capable of handling heavy load pipes with a maximum capacity of 16,000 pounds. Combine the rollers you need to create the best workflow in your workplace. In this way you can achieve increased workflow, productivity and profitability.
MIX
AND MATCH
DEVELOP THE BEST CONFIGURATION FOR YOUR PLACE OF WORK

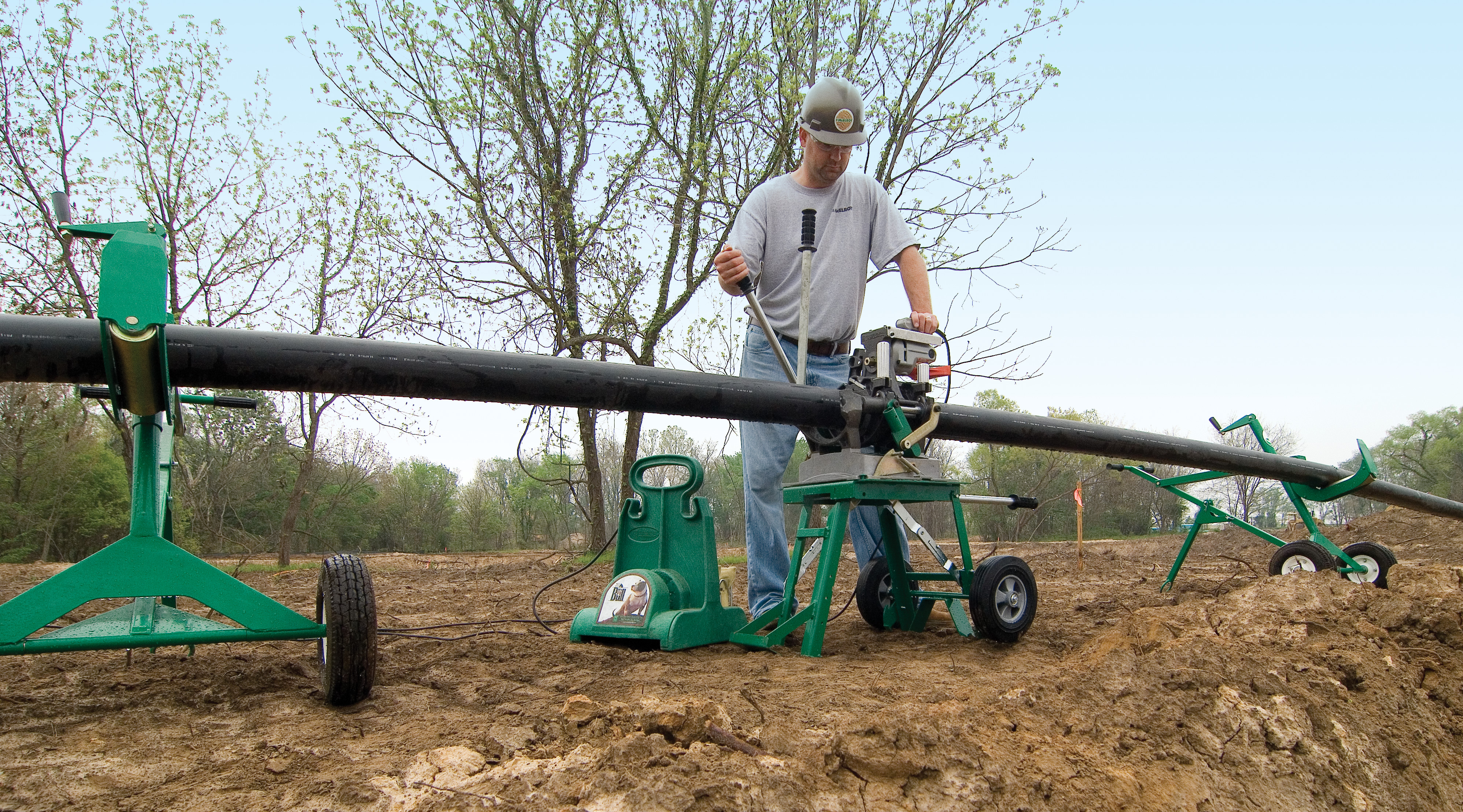

All our pipe supports can be used together to create a workplace that is as efficient as possible. In addition, all pipe rollers can be used with the vast majority of fusion machines and accessories such as QuickCamp or PolyHorse. In this way you will increase your productivity. Almost all of our rollers can be adjusted and adapted to uneven terrain, ensuring that the pipe is supported at the same height as the melting machine. Also facilitating alignment and refining. Pipe supports and low profile rollers allow long lengths of pipe to be taken through the machine instead of moving the joint equipment to the joint, minimizing downtime between mergers.
REDUCE THE CEPA AND USE LESS EQUIPMENT
Less work and more efficiency thanks to the McElroy pipe rollers. Our PolyPorter for example combine the mechanical advantage of a platform with the functionality of a tube holder. A single operator can lift, position and align all types of tubes up to 8 «DIPS. The vast majority of our pipe supports are adjusted hydraulically. This helps to align the pipes in the fusion machine more quickly. And will support pipes from 3 «to 65». This is a great advantage, as you do not need extra lifting equipment. All our rollers have a sealed ball bearing that will always guarantee that the tubes roll easily without any problem and without impediments.
PROTECT
YOUR PIPES
AVOID PIPELINES TOUCHING THE SOIL AND DAMAGING

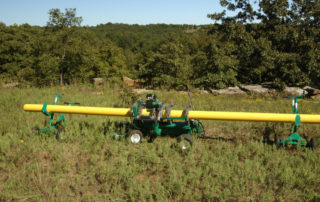

You can place our rollers in sections along a long pipe that comes from the fusion machine itself along the entire pipe. So the pipes will slide more easily. The rollers are very useful if you want the pipe to be always clean and well away from the ground. With our low profile rollers and MegaMc rollers, you can make curve runs at considerable distances. All McElroy pipe rollers resist tips and minimize drag on pipes.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| PolyPorter® | Low Profile Rollers | MegaMc® Rollers | Pipe Stands | |
| Combines the advantages of a dolly and a pipe stand | ✓ | |||
| One person can easily load a length of pipe without straint | ✓ | |||
| Pipe easily slides through the roller into the fusion machine | ✓ | ✓ | ||
| Jack enables height of machine to be raised | ✓ | |||
| Modular design | ✓ | ✓ | ✓ | |
| Keeps pipe clean and off the ground | ✓ | ✓ | ✓ | ✓ |
| Allows for curved pulls | ✓ | ✓ | ||
| Compact storage | ✓ | ✓ | ||
| Tip resistant | ✓ | ✓ | ✓ | ✓ |
| Minimizes drag on the pipe | ✓ | ✓ | ✓ | ✓ |
| Sealed ball-bearing construction | ✓ | ✓ | ✓ | ✓ |
| Minimizes pipe damage | ✓ | ✓ | ✓ | ✓ |
| Stackable for transport 52 rollers on semi trailer | ✓ | |||
| Easily lifted with chain, straps or forks | ✓ | |||
| Hydraulically-adjustable option | ✓ | |||
| 1″ IPS – 4″ DIPS | ✓ | ✓ | ✓ | |
| 2″ IPS – 6″ DIPS | ✓ | ✓ | ✓ | |
| 2″ IPS – 8″ DIPS | ✓ | ✓ | ✓ | |
| 4″ IPS – 12″ DIPS | ✓ | ✓ | ✓ | |
| 6″ IPS – 18″ OD | ✓ | ✓ | ✓ | ✓ |
| 6″ IPS – 20″ OD | ✓ | ✓ | ✓ | ✓ |
| 8″ IPS – 24″ OD | ✓ | ✓ | ✓ | ✓ |
| 12″ IPS – 36″ OD | ✓ | ✓ | ✓ | |
| 16″ OD – 48″ OD | ✓ | ✓ | ✓ | |
| 20″ OD – 65″ OD | ✓ | ✓ |
