ROLLING 28
2″ IPS – 8″ DIPS (63mm – 225mm)
The Rolling 28 has been one of the machines that habs set a standard in the plastic welding industry for the last 40 years. We are talking about one of the most extensive lines of 8-inch plastic welding machinery. Its success lies in the ease of use, quality and robustness.
We also have for the Rolling 28 of a Combination Unit (CU) for the fusion of branch frames.

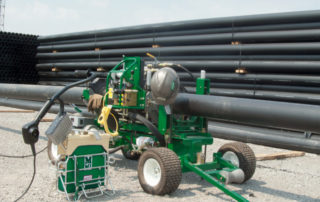

THE ROLLING 28 IN ACTION

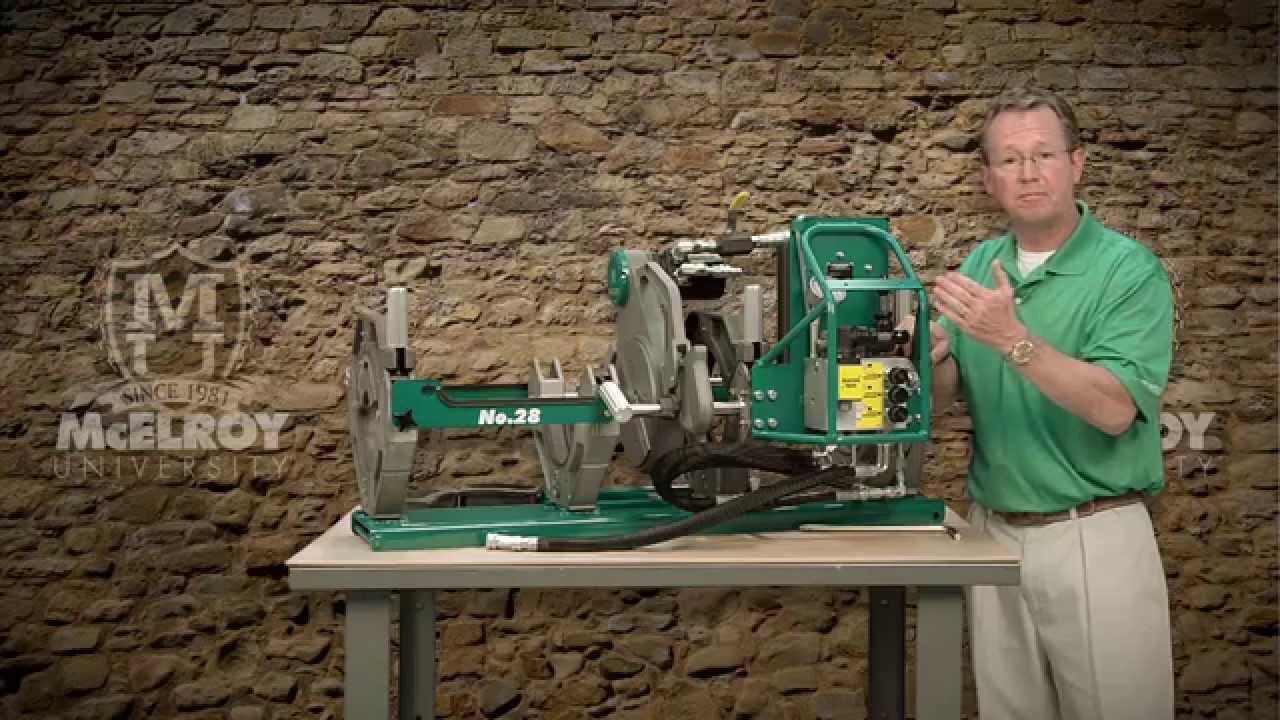

Click on the photos and videos below to see how the Rolling 28 works
PARTS & ACCESSORIES FOR THE ROLLING 28
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.
DataLogger® 6
Collect and analysis of data on all your fusions
Blade Set
Spare facer blades. Facer Blade Set (4 Blades).Extended Life Facer Blade Set (4 Blades). Carbide blades for abrasive materials.
Facer Stand
Facer stand provides a convenient place to protect and store your facer out of the dirt and mud.
Heat Shield
For fusing two materials with different melt rates. Shields the faster melt rate materials from over melting.
Heater Caddy
The Heater Caddy allows you to use the machine to easily carry the heater with the stand from joint to joint. Retrofit Kit for TracStar 28/250 machines built before 9/2010. Allows the heater and heater bag frame to attach to a TracStar.
Heaters
Heaters have a microprocessor control and a dial thermometer to monitor temperature. 220-240V, 50/60Hz, 1Ph Heater. 100-120V, 50/60Hz, 1Ph Heater.
Hot Tap Tool
Branch saddle tapping tool for polyethylene pipe.
Hydraulic Extension Hoses
Required for in-ditch fusion. 25ft Extension Hose Set (4 hoses).
Low Profile Rollers/strong>
Low profile rollers.
Pipe Support Stand
Height is adjustable to properly support, position and align pipe to be fused.
PolyHorse®
Pipe handling system that consists of a series of adjustable racks to store and help install pipe on the job site. Standard PolyHorse. PolyHorse with Power Assist.
PolyPorter®
Aids in lifting pipe into the fusion machine and also performs as a pipe stand.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Self-Centering Stub End Holder
Self-centering stub end holder to hold stub end for butt fusion.
Shipping Container
Reusable shipping container.
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion.
Test Caps
Quick and easy air pressure testing of polyethylene pipe.
Toolbox with Tray
For organizing your inserts and adapters for safe keeping.
SPECIFICATIONS
| Rolling 28/strong> | Rolling 28 Combination Unit | |
| Machine | 575 lbs (260.8 Kg) | 575 lbs (260.8 Kg) |
| 4-Jaw Carriage/strong> | 219 lbs (99.3 Kg) | 247 lbs (112 Kg) |
| 3-Jaw Carriage | 140 lbs (63.5 Kg) | 168 lbs (76.2 Kg) |
| Facer | 37 lbs (16.8 Kg) | 37 lbs (16.8 Kg) |
| Heater | 21 lbs (9.5 Kg) | 21 lbs (9.5 Kg) |
| Shipping Weight | 855 lbs (387.8 Kg) | 905 lbs (410.5 Kg) |
| Rolling 28 | Rolling 28 Combination Unit | |
| System Pressure | 900 PSI (62 BAR) – 1200 PSI (82.7 BAR) Max | 900 PSI (62 BAR) – 1200 PSI (82.7 BAR) Max |
| Hydraulic Reservoir Capacity | 5 Gallons (18.92 Liters) | 5 Gallons (18.92 Liters) |
| Rolling 28 | Rolling 28 Combination Unit | |
| Butt Fusion Heater | 1750 Watt | 1750 Watt |
| Sidewall Heater | N/A | 2270 Watt |
| AC Output | 2 receptacles, 1 @ 120V and 1 @ 240V | N/A |
| Facer Power | Hydraulic | Hydraulic |
| Electric Motor | 1.5 HP | 1.5 HP |
| Min. Power Req. (High Force) | 120V – 3.4 kVA , 3.2 kW 240V – 3.5 kVA , 3.2 kW |
120V – 3.4 kVA , 3.2 kW 240V – 3.5 kVA , 3.2 kW |
| Min. Power Req. (Low Force) | 3.4 kVA , 3.2 kW | 4.1 kVA , 3.7 kW |
| Plug Type (High Force) | 120V – A 240V – C |
120V – A 240V – C |
| Plug Type (Low Force) | A | A |
| Rolling 28 | Rolling 28 Combination Unit | |
| Frame | Welded steel construction | Welded steel construction |
| Front Axle | Articulating | Articulating |
| Brake | Mechanical | Mechanical |
| Rolling 28 | Rolling 28 Combination Unit | |
| Tires | High-flotation inflatable tires | High-flotation inflatable tires |
| Transportation | Pulled via towing ring | Pulled via towing ring |
| Rolling 28 | Rolling 28 Combination Unit | |||
| Machine | Shipping Container | Machine | Shipping Container | |
| Length | 65.5″ (1664 mm) | 72″ (1829 mm) | 65.5″ (1664 mm) | 72″ (1829 mm) |
| Width | 38″ (965 mm) | 44″ (1118 mm) | 38″ (965 mm) | 44″ (1118 mm) |
| Height | 49.5″ (1257 mm) | 45″ (1143 mm) | 49.5″ (1257 mm) | 45″ (1143 mm) |
MORE THAN 40 YEARS BEING THE STANDARD OF INDUSTRY
Our range of Rolling machines are easy to use and have been built with the best materials, which confers them with the highest quality and has been used to become the industry standard in fusion machines since 1975. All our machines of the Rolling range have wheels for your transport. These wheels are easily removed for use in the base. All the lamination models are built to make tube fusions from small 2 «IPS (63mm) tubes to 65» OD (1600mm) tubes with 88.00 Iba of fusion power. Thanks to the laminated you can do any kind of work.
NO LIFTING
REQUIRED
THE CHASSIS WITH WHEELS GIVES EASY WORK HANDLES
For longer pipes of medium and large diameters, this type of machine provides the necessary comfort in the workplace thanks to its portability. For each melting area the rolled machines are towed very simply, remaining stationary as they melt and the pipe rods are dragged.
LOTS OF MACHINE
POWER OPTIONS
GAS AND ELECTRIC MODELS AVAILABLE
For our most popular models, the 412 and 618, we have electric and gas models to power the heater, the facer and the hydraulic pump. This allows choosing the source of energy according to the specific needs of each workplace. Electric models need a power source, a separate generator, or power outlet. They are the best option when the work that is going to be done is inside, since it does not produce fumes. The gas models have a stand-alone generator and receptacles of 120V and 240V and are better for outdoor work.
* Gas machines are available for models 412 and 618.
DATALOGGER®
COMPATIBLE*
THE EASIEST WAY TO RECORD & ANALYZE ALL YOUR FUSION JOINT DATA
All of the medium- and large-diameter Rolling machines are compatible with McElroy DataLogger. This is a small handheld computer that is responsible for documenting and analyzing the key parameters that are happening throughout the merger process. Later all this data is used to verify that all steps and fusion procedures are adequate before installation. The joint DataLogger records can be stored and analyzed in Vault, our server on the Internet. This allows a better classification, faster and easier, a labeling and an exchange of joint records by machine, articulation, operator, device or work.
MACHINES READY
FOR THE DITCH
CARRIAGE CAN BE REMOVED TO WORK ON SMALL SPACES
All our laminating machines have a car with 4 jaws that can be easily removed to make mergers in ditches and small spaces. A fixed jaw and external skate that can be removed, transforming the machine into a 3-jaw car, more compact and small for other types of mergers.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| Rolling 28 | Rolling 250 | Rolling 412 | Rolling 618 | MegaMc® 824 | MegaMc® 1236 | MegaMc® 1648 | MegaMc® 1600 | MegaMc® 2065 | |
| Patented Centerline Guidance System for equal distribution of force around the joint | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Industry standard semi-automatic hydraulic control system | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DataLogger® compatible | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Powerful hydraulic facer for facing the toughest pipe with ease | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Advanced blade design for smooth face and long life | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ISO-compliant industrial Teflon-coated heater plates | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hard-anodized aluminum wear surfaces for corrosion resistance | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Removable 3- or 4-jaw carriage for close quarter use | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Available in Combination Unit (CU) for sidewall fusion | ✓ | ✓ | |||||||
| Large capacity 2-stage hydraulic pump for cool oil at max operating pressure | ✓ | ✓ | |||||||
| Lightweight heater design with 45-degree handle to prevent overheating | ✓ | ✓ | |||||||
| Microprocessor-controlled heater | ✓ | ✓ | ✓ | ✓ | |||||
| Thrust-bearing-equipped clamp knobs to minimize force required to clamp and round pipe | ✓ | ✓ | ✓ | ✓ | |||||
| High-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Medium-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Low-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| On-board generator for powering heater | ✓ | ✓ | |||||||
| Gas-powered models available | ✓ | ✓ | |||||||
| Hydraulic pipe lifts | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Heater and facer can be easily converted to top-loading for confined spaces | ✓ | ✓ | |||||||
| Rugged outriggers for added stability | ✓ | ✓ | ✓ | ✓ | |||||
| 4-jaw carriage only | ✓ | ✓ | |||||||
| Hydraulic clamping available (standard on all MegaMc machines) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Hydraulic pivoting heater and facer | ✓ | ✓ | ✓ | ||||||
| Removable fourth jaw for enhanced convenience in fusing prefabricated fittings onto the pipe | ✓ | ||||||||
| Automatic hydraulic heater stripping to improve open and close times | ✓ |
