ROLLING 412
4″ IPS – 12″ DIPS (110mm – 340mm)
The Rolling 412 is a revolution in the pipe welding industry, being the first fully autonomous fusion machine in history. We have models with electric and gas power mounted on a wheeled chassis which offers more flexibility and maneuvers in the workplace. W
e also have hydraulic clamping.

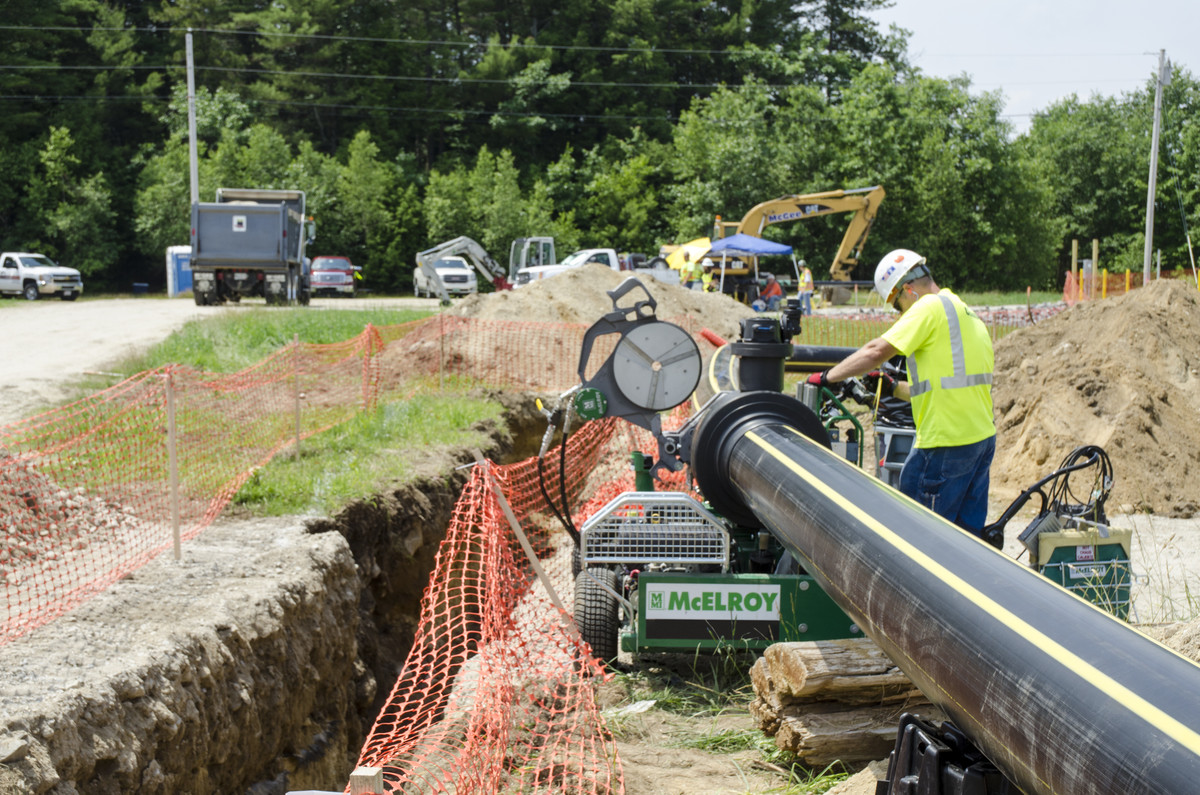

THE ROLLING 412 IN ACTION
Click on the photos and videos below to see how the Rolling 412 works
PARTS & ACCESSORIES FOR THE ROLLING 412
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.
DataLogger® 6
Collect and analysis of data on all your fusions
25′ Extension Cord
For use with non-automated machines when fusing in-ditch.
Facer Stand
Facer stand provides a convenient place to protect and store your facer out of the dirt and mud.
Heat Shield
For fusing two materials with different melt rates. Shields the faster melt rate materials from over melting.
Heaters
Heaters have a microprocessor control and a dial thermometer to monitor temperature. 220-240V, 50/60Hz, 1Ph Heater. 100-120V, 50/60Hz, 1Ph Heater.
Hot Tap Tool
Branch saddle tapping tool for polyethylene pipe.
Hydraulic Extension Hoses
Required for in-ditch fusion. 25ft Extension Hose Set (4 hoses).
Hydraulic Pipe Stand
Adjustable pipe stand to properly support, position, and align pipe to be fused. 12″/18″ Pipe Stand. 12″/18″ Pipe Stand with Manual Height Adjustment. 12″/18″ Pipe Stand with Hydraulic Height Adjustment.
Low Profile Rollers/strong>
Low profile rollers.
PolyHorse®
Pipe handling system that consists of a series of adjustable racks to store and help install pipe on the job site. Standard PolyHorse. PolyHorse with Power Assist.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Self-Centering Stub End Holder
Self-centering stub end holder to hold stub end for butt fusion.
Shipping Container
Reusable shipping container.
Spare 4.63″ Facer Blade Set
Spare facer blades. Facer Blade Set (6 Blades). Extended Life Facer Blade Set (6 Blades). Carbide Facer Blade Set (6 Blades) for abrasive materials.
Spare 9.12″ Facer Blade Set
Spare facer blades. Facer Blade Set (6 Blades). Extended Life Facer Blade Set (6 Blades).
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion.
SPECIFICATIONS
| Rolling 412 | Rolling 412 Electric | |
| Machine | 1225 lbs (556 Kg) | 915 lbs (415 Kg) |
| 4-Jaw Carriage/strong> | 359 lbs (163 Kg) | 359 lbs (163 Kg) |
| 3-Jaw Carriage | 261 lbs (118.4 Kg) | 261 lbs (118.4 Kg) |
| Facer | 62 lbs (28.1 Kg) | 62 lbs (28.1 Kg) |
| 6″ IPS – 12″ DIPS Heater | 28 lbs (13 Kg) | 28 lbs (13 Kg) |
| Heater | 24 lbs (10.9 Kg) | 24 lbs (10.9 Kg) |
| Shipping Weight | 1,805 lbs (819 Kg) | 1705 lbs (774 Kg) |
| Rolling 412 | Rolling 412 Electric | |
| System Pressure | 1200 PSI (82.74 BAR) Max. | 1200 PSI (82.74 BAR) Max. |
| Hydraulic Reservoir Capacity | 6 Gallons (22.71 Liters) | 6 Gallons (22.71 Liters) |
| Rolling 412 | Rolling 412 Electric | |
| Engine Type | 18HP Air Cooled V-Twin | N/A |
| Fuel Type | Gasoline | N/A |
| Fuel Tank Capacity | 5 Gallons (18.92 Liters) | N/A |
| Operational Tank Capacity | 8 Hours | N/A |
| Starting System | Electric | N/A |
| Rolling 412 | Rolling 412 Electric | |
| Input | None, self-contained | 6.2 kVA / 5.2 kW @ 220V-240V, 50/60Hz, 3Ph |
| AC Output | 2 receptacles, 1 @ 120V and 1 @ 240V | N/A |
| AC Output | 2 receptacles, 1 @ 120V and 1 @ 240V | N/A |
| Heater Power | 3000 Watt | 3000 Watt |
| Facer Power | Hydraulic | Hydraulic |
| Min. Power Req. | N/A, Self-Contained Gasoline | 6.2 kVA , 5.8 kW |
| Plug Type | N/A | F |
| Rolling 412 | Rolling 412 Electric | |
| Frame | Welded steel construction | Welded steel construction |
| Front Axle | Articulating | Articulating |
| Brake | Mechanical | Mechanical |
| Rolling 412 | Rolling 412 Electric | |
| Tires | High-flotation inflatable tires | High-flotation inflatable tires |
| Transportation | Pulled via towing ring | Pulled via towing ring |
| Lifting | Lift points and lifting assembly | Lift points and lifting assembly |
| Rolling 412 | Rolling 412 Electric | |||
| Machine | Shipping Container | Machine | Shipping Container | |
| Length | 85″ (2,159 mm) | 90″ (2,286 mm) | 85″ (2,159 mm) | 90″ (2,286 mm) |
| Width | 50″ (1,270 mm) | 60″ (1,524 mm) | 50″ (1,270 mm) | 60″ (1,524 mm) |
| Height | 46″ (1,168 mm) | 63″ (1,600 mm) | 46″ (1,168 mm) | 63″ (1,600 mm) |
MORE THAN 40 YEARS BEING THE STANDARD OF INDUSTRY
Our range of Rolling machines are easy to use and have been built with the best materials, which confers them with the highest quality and has been used to become the industry standard in fusion machines since 1975. All our machines of the Rolling range have wheels for your transport. These wheels are easily removed for use in the base. All the lamination models are built to make tube fusions from small 2 «IPS (63mm) tubes to 65» OD (1600mm) tubes with 88.00 Iba of fusion power. Thanks to the laminated you can do any kind of work.
NO LIFTING
REQUIRED
THE CHASSIS WITH WHEELS GIVES EASY WORK HANDLES
For longer pipes of medium and large diameters, this type of machine provides the necessary comfort in the workplace thanks to its portability. For each melting area the rolled machines are towed very simply, remaining stationary as they melt and the pipe rods are dragged.
LOTS OF MACHINE
POWER OPTIONS
GAS AND ELECTRIC MODELS AVAILABLE
For our most popular models, the 412 and 618, we have electric and gas models to power the heater, the facer and the hydraulic pump. This allows choosing the source of energy according to the specific needs of each workplace. Electric models need a power source, a separate generator, or power outlet. They are the best option when the work that is going to be done is inside, since it does not produce fumes. The gas models have a stand-alone generator and receptacles of 120V and 240V and are better for outdoor work.
* Gas machines are available for models 412 and 618.
DATALOGGER®
COMPATIBLE*
THE EASIEST WAY TO RECORD & ANALYZE ALL YOUR FUSION JOINT DATA
All of the medium- and large-diameter Rolling machines are compatible with McElroy DataLogger. This is a small handheld computer that is responsible for documenting and analyzing the key parameters that are happening throughout the merger process. Later all this data is used to verify that all steps and fusion procedures are adequate before installation. The joint DataLogger records can be stored and analyzed in Vault, our server on the Internet. This allows a better classification, faster and easier, a labeling and an exchange of joint records by machine, articulation, operator, device or work.
MACHINES READY
FOR THE DITCH
CARRIAGE CAN BE REMOVED TO WORK ON SMALL SPACES
All our laminating machines have a car with 4 jaws that can be easily removed to make mergers in ditches and small spaces. A fixed jaw and external skate that can be removed, transforming the machine into a 3-jaw car, more compact and small for other types of mergers.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
