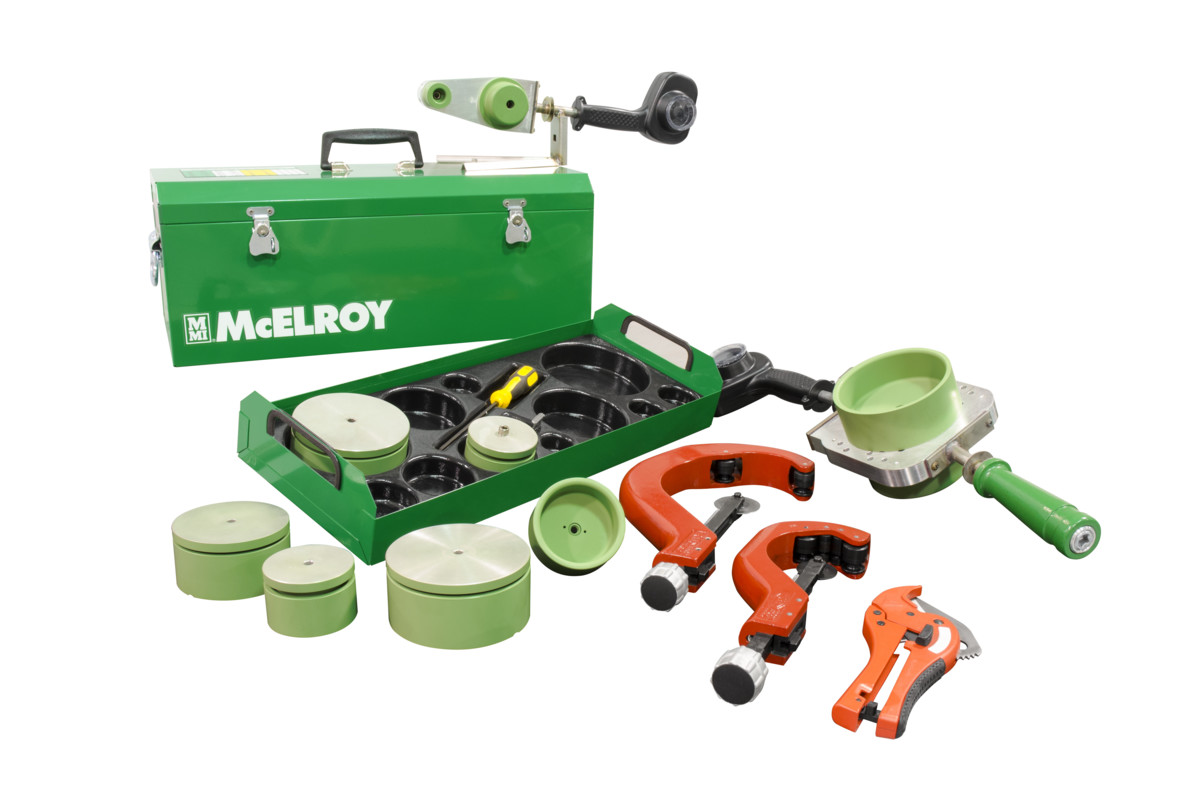

SOCKET FUSION KITS
16mm – 125mm (3⁄8″ – 4″)
For the installation of accessories for pipe diameters between 16mm and 125mm we have McElroy kits from Socket Fusion. These tools are manufactured with the aim of accurately connecting all the brands of polypropylene pipes and fittings that currently exist in the market with fuses. Thanks to our kits for adapters and heaters you will have the necessary components to make fusion to socket in the most effective way possible.
SOCKET FUSION KITS IN ACTION
Click on the photos and videos below to see how the Socket Fusion Kits work
PARTS & ACCESSORIES FOR SOCKET FUSION KITS
Highlighted substitution parts and accessories
Heater Adapter Sets
Used to heat pipe and fitting. All adapters have an anti-stick coating. 20-63m and 63-125mm.
Individual Heater Adapters
Used to heat pipe and fitting. All adapters have an anti-stick coating.
Heater Outlet Head Sets
Used to heat pipe and fitting. All adapters have an anti-stick coating.
20-50mm Depth Gauge / Chamfer Tools & Cold Ring Toolkit
Includes depth gauge/chamfer tools and cold ring toolkit.
Socket Tooling Storage Box
Storage box for socket tooling and accessories. Includes universal storage tray to organize tooling.
Large Heater
16-125mm heater.
Small Heater
16-63mm heater.
Large Heater Auxiliary Handle Kit
Handle assist for large adapters.
Depth Gauge Tool
Aids in marking appropriate depth for socket fusions.
Heater Support Frame/strong>
Mount for top of toolbox to hold heater.
Heater Bench-Mount Assembly
Mount to attach heater to tabletop or bench.
Rotary Pipe Cutters
Easily cut pipe up to 125mm. 10-90mm and 63-125mm.
Ratchet Shear
Cuts up to 42mm pipe.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Insulated Heater Sling
Protects heater and helps maintain a constant temperature.
FUSION OF EASY USE AND PERFORMED BY A SINGLE OPERATOR
There is nothing faster and more accurate for the installation of polypropylene pipe systems like our socket fusion tools. They are very simple tools to use and only require an operator to perform the mergers. Thanks to this you will save time and money, the workplace will be more productive. By needing a single operator, you will have more workers to perform other jobs that need to be performed simultaneously.
MULTIPLE MACHINE
OPTIONS
AT THE WORKPLACE OR AT THE STORE
All tools for socket fusion are available to weld pipes from 16mm to 125mm (⅜ «- 4»). With just one tool you can make fusions of various pipe diameters, giving our tools greater flexibility at the same time to carry out different mergers during a working day We have socket fusion tools for each type of work, for example we have tools to merge pipes and accessories with hand tools, mergers in confined spaces, ceilings, floors, walls, mergers of joint pipes and accessories in the store on a desktop machine.
ACCESSORIES AND TOOLS
FOR ALL MARKET TUBE BRANDS
Our socket fusion tools are always the first choice of any operator since with them it is possible to merge with all brands of polypropylene tubes and accessories that are currently on the market, including PP-R (Polypropylene Random Copolymer) and the newest generation PP-RCT (Polypropylene Random Copolymer Crystalline Temperature). The advantages of using this type of material in pipes unlike other thermoplastic materials used in previous years, is that they do not corrode or leak over time.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| Socket Kits | Spider 125 | SmartFab 125 | |
| Hand-operated | ✓ | ✓ | ✓ |
| Toolless adjustment | ✓ | ✓ | ✓ |
| Fits all pipe brands of polypropylene pipe | ✓ | ✓ | ✓ |
| Teflon-coated socket adapters and heaters | ✓ | ✓ | ✓ |
| Thermostatically-controlled heater to provide constant fusion pressure | ✓ | ||
| Serviceable heaters, including the electronics | ✓ | ||
| Compact, lightweight | ✓ | ✓ | |
| No inserts necessary | ✓ | ||
| D-ring for easy lifting | ✓ | ||
| HDPE fusion capability | ✓ | ||
| Jaws or inserts that maintain roundness of pipe | ✓ | ✓ | |
| Strong gearbox and self-locking drive handle | ✓ | ✓ | |
| Custom toolbox/work bag | ✓ | ✓ | |
| Heater pivots 180° so the machine, pipe and fitting never has to be repositioned | ✓ | ||
| Jaws clamp individually and are size independent, allowing a greater combination of pipe and fittings | ✓ | ||
| Uses standard McElroy heater adapters | ✓ | ||
| ideal for prefabrication of large assemblie | ✓ |
