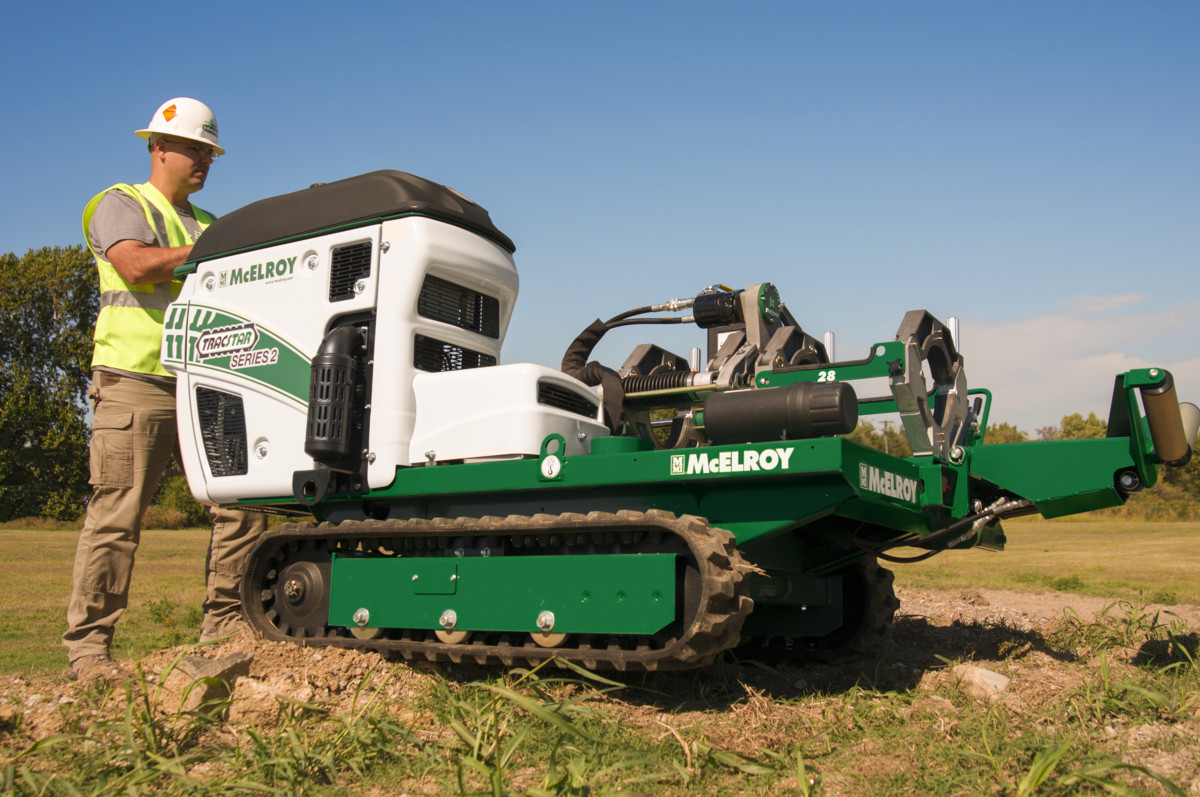

TRACSTAR® 412 SERIES 2
4″ IPS – 12″ DIPS (110mm – 340mm)
Based on our clients’ own field experiences, we have designed and built the new Tracstar 412 Series 2. A new fairing system facilitates the dissipation of heat generated by the machine while providing easier access at the same time. perform the maintenance of the machine. It also has an updated electrical system with the latest technologies in the sector, providing greater safety of the electrical circuit and a standard battery disconnection for a simpler block.
This machine is also available as a combined unit, for its fusion of branch frames and an automated machine.

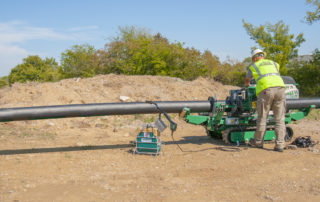

THE TRACSTAR 412 IN ACTION
Click on the photos and videos below to see how the Tracstar 412 works
PARTS & ACCESSORIES FOR THE DYNAMC 28
Highlighted substitution parts and accessories
Butt Fusion & Mitered Insert Sets
Surface hardened for longer life and are serrated for maximum grip.

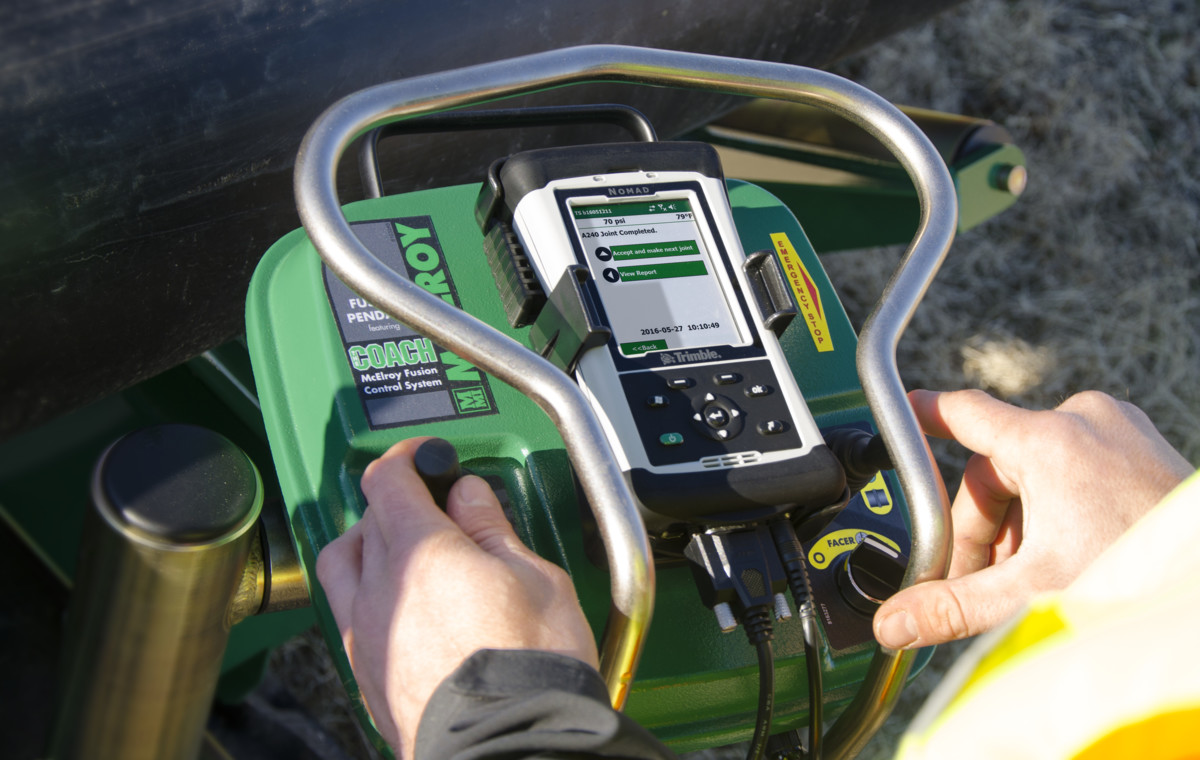

DataLogger® 6
Collect and analysis of data on all your fusions
25′ Extension Cord
For use with non-automated machines when fusing in-ditch. 240V, 1Ph, 15A Cord.
Automated In-Ditch Extension Kit
Set of four 25′ hydraulic extension hoses and extension cables and pendant strap. This kit is required for automated in-ditch fusion. Set of four 25′ hydraulic extension hoses, extension cable, facer stand and pendant strap.
External Bead Remover
Trim the bead created during the fusion process.
Facer Stand
Facer stand provides a convenient place to protect and store your facer out of the dirt and mud.
Heat Shield
For fusing two materials with different melt rates. Shields the faster melt rate materials from over melting.
Heater Caddy
The Heater Caddy allows you to use the machine to easily carry the heater with the stand from joint to joint. Retrofit Kit for TracStar 28/250 machines built before 9/2010. Allows the heater and heater bag frame to attach to a TracStar.
Heater Stand
Holds heater for easier carrying and protection. Helps maintain constant temperature.
Heaters
Heaters have a microprocessor control and a dial thermometer to monitor temperature. 220-240V, 50/60Hz, 1Ph Heater. 100-120V, 50/60Hz, 1Ph Heater.
Hot Tap Tool
Branch saddle tapping tool for polyethylene pipe.
Hydraulic Clamping Retrofit Kit
Increase productivity by eliminating manual cranking of knobs.
Hydraulic Extension Hoses
Required for in-ditch fusion. 25ft Extension Hose Set (4 hoses).
Pipe Support Stand
Height is adjustable to properly support, position and align pipe to be fused. 8″ Pipe Stand.
Pipe Support Stand
Height is adjustable to properly support, position and align pipe to be fused. 8″ Pipe Stand.
PolyHorse®
Pipe handling system that consists of a series of adjustable racks to store and help install pipe on the job site. Standard PolyHorse. PolyHorse with Power Assist.
Pyrometer Kit
Pryometer kit for accurately checking surface temperatures of heater. Measures surface temperature of heater.
Self-Centering Stub End Holder
Self-centering stub end holder to hold stub end for butt fusion.
Shipping Container
Self-centering stub end holder to hold stub end for butt fusion.
Shipping Container
Self-centering stub end holder to hold stub end for butt fusion.
Spare 4.63″ Facer Blade Set
Spare facer blades. Facer Blade Set (6 Blades). Extended Life Facer Blade Set (6 Blades).. Carbide Facer Blade Set (6 Blades) for abrasive materials.
Spare 6.13″ Facer Blade Set
Spare facer blades. Facer Blade Set (6 Blades). Extended Life Facer Blade Set (6 Blades).
Spare Auto Pendant
Reusable shipping container.
Spare Auto USB Thumb Drive & Adapter
Used for downloading fusion records from the Auto Pendant to a USB thumb drive. For use with Pendant 1 models.
Spare Automated Control Box
Spare control box for quick replacement. For use with Automated TracStar Series 2 machines.
Spare Heater Plate Kit
Heater plates have an anti-stick coating and are required for butt fusion.
Toolbox with Tray
For organizing your inserts and adapters for safe keeping. For organizing your inserts and adapters for safe keeping.
SPECIFICATIONS
| TracStar® 412 Series 2 | ||
| Machine | 2,110 lbs (957 Kg) | |
| 4-Jaw Carriage/strong> | 380 lbs (172.4 Kg) | |
| 3-Jaw Carriage | 282 lbs (128 Kg) | |
| Facer | 62 lbs (28.1 Kg) | |
| Heater | 24 lbs (10.9 Kg) | |
| Shipping Weight | 2,365 lbs (1,072.8 Kg) | |
| TracStar® 412 Series 2 | |
| System Pressure | 2000 PSI (137.9 BAR) Max. |
| Hydraulic Reservoir Capacity | 8 Gallons (30.28 Liters) |
| TracStar® 412 Series 2 | |
| Engine Type | 20 HP Liquid Cooled. |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 5 Gallons (18.92 Liters) |
| Operational Tank Capacity | 8 Hours |
| Starting System | Electric |
| TracStar® 412 Series 2 | |
| Input | None, self-contained |
| AC Output | 120V & 240V, 60Hz, 15 Amp |
| Heater Power | 3000 Watt |
| Facer Power | Hydraulic |
| TracStar® 412 Series 2 | |
| Frame | Welded steel construction |
| Brake | Self-locking |
| TracStar® 412 Series 2 | |
| Tracked | Rubber crawler tracks |
| Transportation | Self-propelled |
| Vehicle Speed | 1.5 MPH max |
| Lifting | Lift points and lifting assembly |
| TracStar® 412 Series 2 | ||
| Machine | Shipping Container | |
| Length | 97.2″ (2,464 mm) | 90″ (2,286 mm) |
| Width | 53.9″ (1,369.1 mm) | 60″ (1,524 mm) |
| Height | 53.1″ (1,348.7 mm) | 63″ (1,600 mm) |
A NEW REVOLUTION FOR THE INDUSTRY
Ease of movement and maneuvering to make long pipe mergers is possible with the number one market option, the TracStar. Instead of wheels they have rubber tracks that are self-propelled and allow these machines to overcome irregular terrain and climb slopes of up to 30%. All Tracstar have independent electrical equipment. The trolley is mounted on the chassis itself and is driven by tracks to make the loading of the pipe and the movement along the pipe even easier. The car can also be disassembled to work in tight spaces like a trench. The Tracstar is available in all types of sizes for melting tubers from 2 «IPS to 48» OD.
SELF-CONTAINED
DIESEL ENGINE
MORE PRODUCTIVITY AT WORK

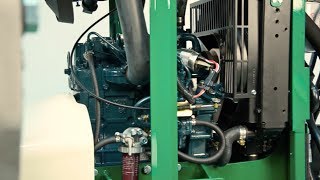

All our Tracstar machines have a self-contained liquid-cooled or turbo-diesel engine. These engines have a fuel tank large enough to merge and be operating for a full day of work. Our newest and largest model, the Tracstar 1200, comes with an emission control engine with the latest advances that meets all industry standards. Tier 3 of the EPA, which eliminates the need for diesel exhaust fluid (DEF).
READY FOR
THE DITCH
REMOVABLE TRANSPORTATION FOR USE IN REDUCED SPACES
All our machines in the Tracstar range come with an interchangeable 4-jaw carriage. This can be removed very easily to perform mergers in smaller spaces and ditches. The outer clamp and skid can also be removed from the cart. So we turn it into a 3-jaw car and we have a smaller fusion machine.
VEHICLE MOUNTED
ON THE TRACK
WORK UP TO THE HEAVIEST TERRAINS
The Tracstar has double rubber tracks to move with ease on any terrain, whether mud, snow or desert sand, the Tracstar are able to overcome up to 30% slopes. Its track wheel system has a zero-degree turning radius that shoots the weight evenly throughout the machine. This means that the machine never sinks on soft soils.
The tracks help to reduce the damage that the asphalt can produce, which also guarantees its use in the city. It is not necessary to use cranes since these machines can be driven directly from the warehouse to the workplace. We make it as easy as possible to adjust the tension in the tracks when necessary and the track components, in themselves, are replaceable.
GENERATOR IN
THE OWN MACHINE
YOU WILL NOT NEED EXTERNAL ENERGY SOURCES
All Tracstar have an on-board generator. They generate their own electricity and hydraulic energy, to give the operator all the comfort. This can be welding all day and does not have the need to carry extra machinery or generators separately.
LEADERS OF THE PLASTIC
PIPE WELDING INDUSTRY
MAXIMUM PERFORMANCE ALWAYS GUARANTEED
All Plastic Pipe Welding machines and equipment are specifically designed to withstand the most adverse conditions and climates. We guarantee that our machines will last for years. But if that were not enough for you, all our machines come with the maximum warranty period possible in the field of plastic welding, 5 years warranty.
ADITIONAL FEATURES
| TracStar 28 Series 2 | TracStar 250 Series 2 | TracStar 412 Series 2 | TracStar 618 Series 2 | TracStar 500 Series 3 | TracStar 630 | TracStar 900 | TracStar 1200 | |
| Self-contained, self-propelled, all-terrain | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Removable 3- or 4-jaw carriage for close quarter use | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Dual Speed Tracks | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Patented Centerline Guidance System for equal distribution of force around the joint | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Serrated jaws and inserts keep pipe from slipping during fusion | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Thrust-bearing-equipped clamp knobs to minimize force required to clamp and round pipe | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Powerful hydraulic facer for facing the toughest pipe with ease | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Industry standard semi-automatic hydraulic control system | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ISO-compliant industrial Teflon-coated heater plates | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Self-locking brakes | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| High-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Medium-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Low-force cylinder machine available | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| DataLogger® compatible | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| On-board generator for powering heater | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Advanced blade design for smooth face and long life | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Battery disconnect for easy lockout | ✓ | ✓ | ✓ | ✓ | ||||
| 8+ hours operational fuel tank capacity | ✓ | ✓ | ✓ | ✓ | ||||
| 11+ hours operational fuel tank capacity | ✓ | |||||||
| 12+ hours operational fuel tank capacity | ✓ | |||||||
| 17+ hours operational fuel tank capacity | ✓ | ✓ | ||||||
| Automated machine option | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Combination unit (CU) available for sidewall fusion | ✓ | ✓ | ||||||
| Dual hydraulic pipe lifts | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hydraulic clamping available (standard on TracStar 500 Series 3, 630, 900, 1200) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Indexer-mounted, hydraulic pivoting heater and facer | ✓ | ✓ | ✓ | ✓ | ||||
| Fuel-saving auto throttle | ✓ | |||||||
| Heater and facer can be easily converted to top loading for confined spaces | ✓ | ✓ | ✓ | |||||
| Wireless Remote Control ensures safe efficient working environment and precise machine placement | ✓ | ✓ | ✓ | |||||
| Ergonomic operator platform | ✓ | |||||||
| Removable cowling design allows easy access for machine maintenance | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Remote engine stop/start | ✓ | |||||||
| Outriggers for machine stability and leveling | ✓ |
